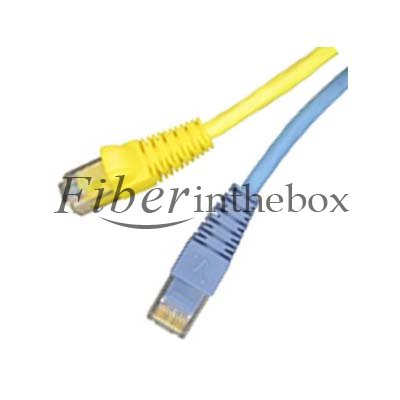

1m Cat6 Unshielded Twisted Pair(UTP) LSZH Patch Cable (MOQ: 15km)
UTP is Unshielded Twisted Pair and STP is Shielded Twisted Pair. STP cable is wrapped in metal foil or braid. UTP and STP have the same Ethernet communication performance, and UTP is accepted for residential and general commercial installation.The range of Cat6 patch cables are manufactured using Low Smoke Zero Halogen UTP stranded cable. LSZH cables have good flame-retardant performance.Each assembly is fully moulded and features 50 micron gold RJ45 connectors.In Fiberinthebox, any lengths and any colors are available, we can provide you a custom service.
Key Features
Meet IEC 60754 pa 2, Non-Halogen based on pH and Conductivity Measurements, IEC 61034 pa 2, Smoke Emissions, IEC 60332 pa 1, Flammability and Fire Retardant, NES 713, Toxicity IndexFeatures UL rated, LSZH stranded UTP cable along with long-body 50 micron gold RJ connectors and moulded color-matching boots Performance exceeding Category 6 specifications up to 250MHz Fully moulded, 4 twisted pair stranded 24 AWG assemblies Fully backward compatible with Cat.5/Cat.5E networksMaximum throughput, reliability and performance in your IT networkIdeal for high speed Gigabit Ethernet systems with fault-free data/voice transmission
Specifications
NEXT：≥54.0 dB Power Sum NEXT ：≥54.0dB FEXT：≥43.1dB Power Sum FEXT : ≥40.1 dB Attenuation：≤0.2 dB Return Loss ：≥23.0dB Gauge ：FCC PART 68, Subpa F and IEC-60603-7 compliantPair Count ：4-Pair individually color coded with filler and LSZH jacketSequence ：Wiring sequence T568A/B Durability：1000 mating cyclesRJ45 Plug ：Polycarbonate, FCC Pa 68 Subpa F, UL94V-0
Applications
Ideal for high speed Gigabit Ethernet systems with fault-free data/voice transmissionThis cable work with CAT6 Patch Panels, CAT6 Jacks, Wallplates, Surface-Mount Housings, Snap Fittings etc This cable work with CAT6 Patch Panels, CAT6 Jacks, Wallplates, Surface-Mount Housings, Snap Fittings etc.
