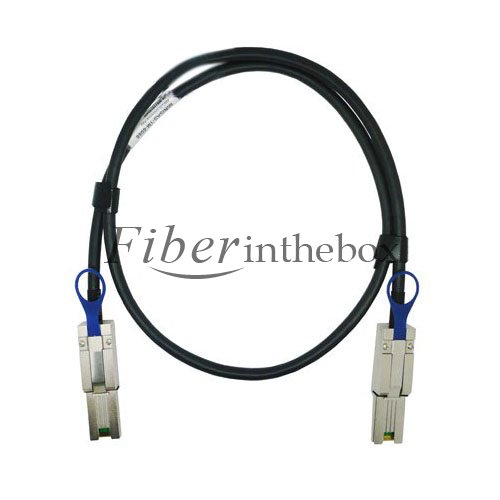

MS-MS-28-1-xx
Mini-SAS four lane, passive twinaxial copper cable assemblies were developed to suppo SAS (Serial-Attached-SCSI) Enterprise storage networking links. These cables run at SAS 3Gb and 6G per lane and exceed SAS 2.1 requirements. These cables also suppo external SATA (Serial-Attached-ATA) storage networking requirements at 3Gb and 6Gb. Non-Equalized cables will perform at a maximum of 6Gb and Equalized a maximum of 3Gb. The SFF-8088 connectors feature low profile backshell enables easy access and removal in tight fitting areas. Applications include links for Drive to Host Controller Adapter, Host Controller Adapter to Switch and SAS Switch to Switch.
All our Mini SAS SFF-8088 Cables are 100% compatible with major brands like Cisco, HP, Juniper, Enterasys, Extreme, H3C and so on. If you would like to order high quality compatible Mini SAS SFF-8088 Cables and get worldwide delivery, we believe Fiberinthebox is your best choice.
All our Mini SAS SFF-8088 Cables are 100% compatible with major brands like Cisco, HP, Juniper, Enterasys, Extreme, H3C and so on. If you would like to order high quality compatible Mini SAS SFF-8088 Cables and get worldwide delivery, we believe Fiberinthebox is your best choice.
Specifications
Description: Mini SAS (SFF-8088) to Mini SAS (SFF-8088) CableCable Type: SCSI external cableConnector 1: 26-pin SFF-8088 male Mini-SAS Connector 2: 26-pin SFF-8088 male Mini-SASWire AWG: AWG28Length: 1 meterSuppo s data transfer rates up to 6 GbpsInfiniband plug with thumbscrews for secure connections Low power consumptionCompliant Mini SAS MSA RoHS Compliant Excellent EMI performance High reliability Wide operating temperature range: 0-70℃
Application
For use in Storage Area Networks, to connect SAS Expander enabled controllers and enclosuresConnect SAS Controllers to SAS BackplanesLinks for Drive to Host Controller Adapter, Host Controller Adapter to Switch and SAS Switch to Switch.
Ordering Information
| Pa No. | Data Rate | Length | Wire AWG | Cable Type | Temp. Range |
| MS-MS-28-1-xx | Up to 6G | 1m | AWG28 | SCSI external cable | 0-70℃ |
| MS-MS-28-2-xx | Up to 6G | 2m | AWG28 | SCSI external cable | 0-70℃ |
| MS-MS-28-3-xx | Up to 6G | 3m | AWG28 | SCSI external cable | 0-70℃ |
| MS-MS-26-4-xx | Up to 6G | 4m | AWG26 | SCSI external cable | 0-70℃ |
| MS-MS-26-5-xx | Up to 6G | 5m | AWG26 | SCSI external cable | 0-70℃ |
Notes
This new version Mini SAS (SFF-8088) to Mini SAS (SFF-8088) Cable opens EEPROM for customer re-coding for different applications.
This new version Mini SAS (SFF-8088) to Mini SAS (SFF-8088) Cable opens EEPROM for customer re-coding for different applications.
Packaging
Packed with antistatic bag in a box(Default Customer Options) Specific Labels as Request
Impo ant Notice
OEM and ODM
Combining our extensive design and engineering capability in optical transceiver industry, with our competitive advantages from integrated manufacturing capability, internal supply chain, and cost competitive and scalable operation infrastructure, Fiberinthebox provides OEM, ODM, and contract manufacturing service to world leading customers with our manufacturing facilities in China.We are also mainly engaged in providing complete sets of optoelectronic device solutions to gain more brand extensions and influence for Fiberinthebox in the world. OEM/ODM order is available We can supply MS-MS-28-1-xx according to your requirements, and design MS-MS-28-1-xx label and packaging for your company. We welcome any inquiry for customized Mini SAS SFF-8088 Cables.
Order Procedure
Please contact us with any special requirements you may have, we can help you create a custom solution to meet almost any application. Our engineer will review the project and provide a quotation within 1-2 business days.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
a. Email ( sales@fiberinthebox.com ) us a rough sketch to a detailed drawing.
b. Our engineer will review the project and provide a quotation within 24 hours.
c. We can arrange production as low as 1 piece and as high as 1,000 pieces in 1~4 business days once an order is placed.
Details
Shipment
International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.
Save Cost By Buying Mini SAS SFF-8088 Cables From Original Manufacturer Fiberinthebox Directly.
Fiberinthebox is an professional manufacturer supplier of Mini SAS SFF-8088 Cables. All of our Mini SAS SFF-8088 Cables are tested in-house prior to shipping to guarantee that they will arrive in perfect physical and working condition. We guarantee Mini SAS SFF-8088 Cables to work in your system and all of our Mini SAS SFF-8088 Cables come with a lifetime advance replacement warranty. If you have questions about Mini SAS SFF-8088 Cables, please feel free to contact us at sales@fiberinthebox.com .
