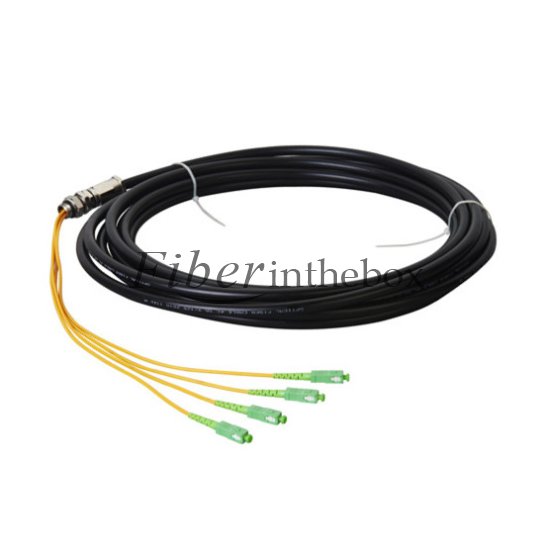

4-Fiber Single-mode 9/125 FC/SC/ST/LC Waterproof Fiber Pigtail
Fiber optic waterproof pigtails can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.
Key Features
2, 4, 6, 8 and 12 cords optional Good reliability and stability Excellent water-resistance performanceApplicable connector: FC, SC, ST, LC Waterproof, rigid and anti-corrosive copper connector Simple installation
Applications
Specifications
| Parameter | UPC,SM | APC, SM |
| Return Loss(dB) | ≥50 | ≥60 |
| Inse ion loss(dB) | ≤0.3 | ≤0.3 |
| Repeatability 1000 times(dB) | ≤0.2 | |
| Exchange(dB) | ≤0.2 | |
| Working Temperature(℃) | -40 to +80 | |
