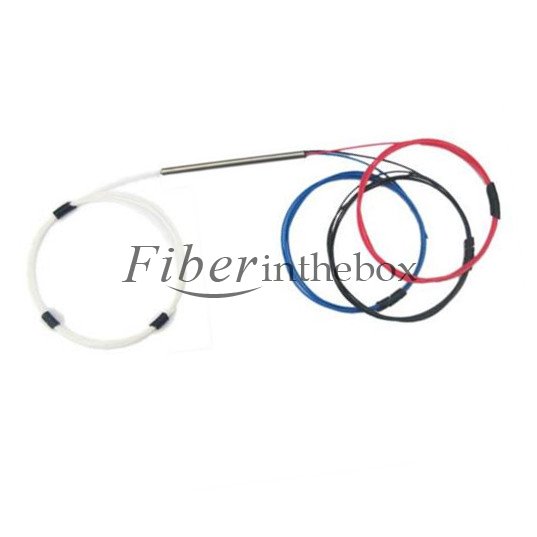

1x3 FBT Splitter Singlemode Three Window 250um Bare Fiber Splitter

As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT splitters are highly stable for multipo optical signal splitting with low inse ion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment

Fiberinthebox Fused Biconic Tapered (FBT) splitters are available with 1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20 and 1x24 configurations with single mode or multimode fiber and we offer all type connectors of pre-connectorized like SC, FC, ST, LC and E2000 etc.
The 1x3 Singlemode Three Window 250um Bare Fiber Splitter can splitter the optical signals into 3 pa s, and the coupling ratio can be customized

Key Features

Low inse ion loss Low polarization dependent loss High Return LossCompact for small application areas like in closure or splice trays Wide Operating Temperature and Wavelength Excellent Environmental & Mechanical Stability Qualified Under Telcordia GR-1221 and GR-1209Steel tube-compact size

Applications

FTTX (FTTP, FTTH, FTTN, FTTC) Passive Optical Networks (PON) Local Area Networks (LAN) CATV Systems Amplifying, Monitoring System Test Equipments

Order Information

For FBT Splitters, Fiberinthebox provides a whole series of this kind customized for specific applications:
a. Different coupling ratio can be customized according to your requirement.
b. Two out of the 1310nm, 1490nm and 1550nm operating wavelength can be selected.
c.1x2, 1x3, 1x4, 1x5, 1x6, 1x8, 1x12, 1x16, 1x18, 1x20, 1x24 configurations of splitters are available.
d. 250um bare fiber, 0.9 loose tube, 2. 0mm or 3.0mm LSZH fiber cables can be selected.
e. The length of input or output fibers can be also customized; 1m length as default.
Welcome to contact us for customized solutions.

Mechanical Drawing

Fiberinthebox offers cost-effective standards-based 1x3 Singlemode Three Window 250um Bare Fiber Splitter FBT Splitter. As a 3rd pa y OEM manufacturer, our 1x3 Singlemode Three Window 250um Bare Fiber FBT Splitter is delivered to worldwide from our factory directly, and they are all based on thin film filter technology and metal bonding micro optics packaging. What's more, our 1x3 Singlemode Three Window 250um Bare Fiber Splitter FBT Splitter are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. Please contact us at sales@fiberinthebox.com if you want to know more details.

Specifications

Configuration Type	1x 3		1x4		1x5		1x6
Grade	P	A	P	A	P	A	P	A
Maximum insertion loss (dB)	5.8	6	6.8	7	7.8	8.5	8.7	9.5
Uniformity (Max.) (dB)	0.8		1		1.2		1.2
Polarization Dependant Loss (Max.) (dB)	0.15		0.15		0.2		0.2
Directivity (dB)	>55 dB
Operating Temperature	-20 ° C ~ +85 ° C
Storage Temperature	-40 ° C~+85 ° C
Fiber Type	Corning Singlemode SMF-28
Fiber Pigtail Length (m)	1m or Custom on Request
Port Configuration	1x3 to 1X6
Operating Wavelength (nm)	1310+40, 1550+40,1310/1550nm±40
