Overview
Use FiberInspector™ Mini to examine installed fiber terminations or ensure terminations are smooth and clean. Avoid the #1cause of cause of fiber link failure: di y end-faces. Di , dust and other contaminants are the enemy of high-speed data transmission over optical fiber. Today's network applications require more bandwidth, making loss budgets tighter than ever. It is critical that all optical connections are clean and free of contaminants to ensure application success.The Fluke Networks FiberInspector Mini Video Microscope puts the solution to contaminated end-faces in the palm of your hand. This po able video microscope works ten times faster than traditional scopes. Simply inse the probe and inspect installed fiber connectors through the bulkhead adapters without accessing the backside of the patch panels. Using a video microscope also completely ensures that no harmful laser light ever reaches your eyes.
Its miniature size makes the FiberInspector Mini extremely po able and convenient. The device displays exceptionally sharp images on its 1.8" screen. Extend battery life in the grip trigger mode, when the device only shows images when squeezing the sides of the display. With a range of standard and accessory probe tips, end-faces can be inspected when using many different connector types, including LC connectors.
Its miniature size makes the FiberInspector Mini extremely po able and convenient. The device displays exceptionally sharp images on its 1.8" screen. Extend battery life in the grip trigger mode, when the device only shows images when squeezing the sides of the display. With a range of standard and accessory probe tips, end-faces can be inspected when using many different connector types, including LC connectors.
Features
200x magnification probe enables inspection of both multimode and singlemode end-faces inside po s and on patch cords Miniature display boasts an exceptionally sharp 1.8" screen Grip trigger activation extends battery life Various probe adapter tips allow for inspection through many different connector po types
Order Information
|
Model Number/Name |
Description |
|
FT500 |
FiberInspector Mini Video Microscope - Includes fiber probe and display, AC adapter/battery charger, probe adapter tips (ST, SC and universal 2.5mm patch cord tip) and soft carrying case). |
|
FT525 |
FiberInspector Mini and Cleaning Kit |

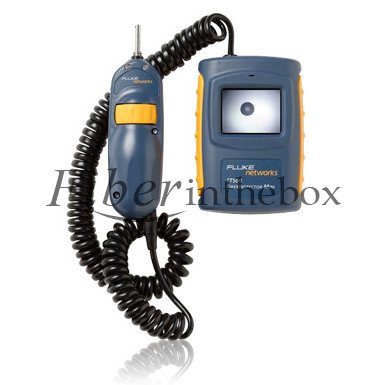

Picture Detail
Specifications
| General | |
| Temperature range | Operating: 0 °C to 40 °C Storage: -10 °C to +60 °C |
| Humidity range | Operating: 0 % to 45 % RH non-condensing Storage: 0 % to 95 % RH non-condensing |
| Weight | 8.1 oz (230 g) (probe and display) |
| Certifications | CE |
| Probe | |
| Magnification | 200X |
| Camera type | 0.33 in (8.38 mm) CMOS sensor |
| Light source | LED, >100,000 hr life |
| Lighting technique | Coaxial |
| Dimensions | 5.5 in x 1.8 in x 1.7 in (140 mm x 46 mm x 44 mm) (length depends on adapter tip) |
| Display | |
| Display type | 1.8 in (46 cm) TFT LCD |
| Video input | NTSC |
| Power source | Rechargeable NiMH battery or ac power |
| AC adapter/ charger | Charges six NiMH cells Input: 100-240 Vac, 0.5 A, 47 Hz to 63 Hz Output: 9 V dc, 0.4 A |
| Battery life | 2 hours continuous use |
| Dimensions | 3.9 in x 2.8 in x 1.7 in (100 mm x 72 mm x 43 mm, with TPAK adapter) |
