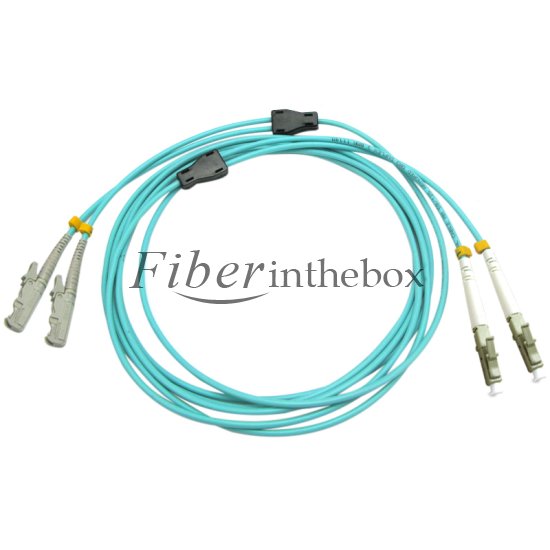

Armored patch cable can be deployed directly in different harsh environment, without additional tube for protection, save space, reduce construction cost, and make the maintenance more conveniently. This Duplex Multimode Light Armored Standard optical fiber cable constructed with highest quality components for unmatched durability and reliability. With a Standard Boot on each end. This cable is appropriate for use in data centers and networks with 10G LC applications.
With OFNR (Riser)/OFNP(Plenum) and 3.0mm thickness, this Armored Fiber Optic cable is specifically designed for light to medium duty indoor/outdoor applications. Its rugged shell with steel and kevlar is 10 times stronger than regular Fiber Optic Cable and has a 40% higher rated range of operating temperature. Deploy this cable in environments where networking equipment undergo repeated abuse.
Fiberinthebox 10G OM3 Multimode 50/125 armored patch cable provide 10 Gigabit data transfer speeds in high bandwidth application, up to 5 times faster than standard 10G OM3 50/125um fiber patch cable. With Fiberinthebox good development, we can offer more and more competitive price on a relatively higher-end heavy armored patch cables.
Warm Tips:The default fiber diameter for the cable is 2.0mm,if you'd like to customize other types as 3.0mm,0.9mm,please kindly enquiry us. (The diameter is refer to the thickness of the cable,the size is able to match the corresponding equipment po .)
.jpg)
|
Connector Type |
LC to E2000 |
||
|
Fiber Type |
Multimode OM3 50/125 |
||
|
Length |
3m |
||
|
Endface Type（nm） |
PC |
UPC |
APC |
|
Insertion Loss（dB） |
≤0.20 |
≤0.20 |
≤0.30 |
|
Repeatability（dB） |
≤0.10 |
||
|
Exchangeability（dB） |
≤0.20 |
||
|
Return Loss（dB） |
≥45 |
≥50 |
≥60 |
|
Core Diameter |
50µm ± 2.5µm |
||
|
Cladding Diameter |
125µm ± 1µm |
||
|
Outer Diameter |
3.2mm ± 0.10mm |
||
|
Max. Attenuation |
3.5dB/km @ 850nm |
||
|
Min Static Bend |
10D |
||
|
Min Dynamic Bend |
15D |
||
|
Tensile Load (long term) |
400N |
||
|
Tensile Load (short term) |
400N |
||
|
Crush (long term) |
3000N/100mm |
||
|
Crush (Short term) |
5000N/100mm |
||
|
Operation Temperature(℃) |
-25℃~ +70℃ |
||
|
Storage Temperature(℃) |
-40℃~ +85℃ |
||
|
Durability(time) |
>1000 times |
||
|
Color |
Aqua |
||
|
Industry Standard |
Telcordia GR-326-CORE |
||
