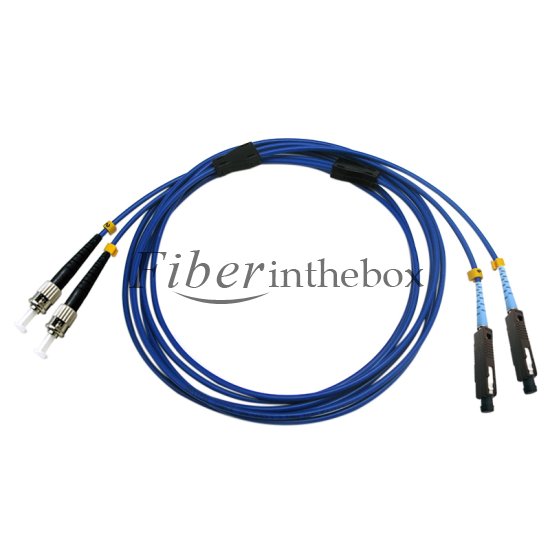

ST/UPC to MU/UPC Duplex Singlemode 9/125 Armored Patch Cable

ST/UPC to MU/UPC Duplex Singlemode 9/125 Armored Patch Cable

Armored patch cable can be deployed directly in different harsh environment, without additional tube for protection, save space, reduce construction cost, and make the maintenance more conveniently. This Duplex Singlemode Armored Standard optical fiber cable constructed with highest quality components for unmatched durability and reliability. With a Standard Boot on each end. This cable is appropriate for use in data centers and networks with 10GbE and 8G ST applications.
With OFNR (Riser)/OFNP(Plenum) and 3.0mm thickness, this Armored Fiber Optic cable is specifically designed for light to medium duty indoor/outdoor applications. Its rugged shell with steel and kevlar is 10 times stronger than regular Fiber Optic Cable and has a 40% higher rated range of operating temperature. Deploy this cable in environments where networking equipment undergo repeated abuse.
Fiberinthebox Singlemode 9/125 armored patch cable provide 1Gigabit data transfer speeds in high bandwidth application, up to 5 times faster than standard 9/125um fiber patch cable. With Fiberinthebox good development, we can offer more and more competitive price on a relatively higher-end heavy armored patch cables.

Warm Tips:The default fiber diameter for the cable is 2.0mm,if you'd like to customize other types as 3.0mm,0.9mm,please kindly enquiry us. (The diameter is refer to the thickness of the cable,the size is able to match the corresponding equipment po .)

Features

Stainless steel tube & metal braid under outer LSZH jacketMicro diameter stainless steel tube for protection High resistance of tensile strength, pressure, rodent bite Without damage by construction Ensure transmission power and avoid additional attenuation Prevent optic fiber from destroy by harsh environment Prevent optic fiber from destroy by improper operation

Applications

FTTH, LAN, Test equipment, Military industry CATV Measuring equipments Fiber optic communication systemOptical active component and equipment

Item information

Fiber: Duplex Singlemode 9/125 Fiber Optic Cable Connector: ST-MU Connectors at ends Cable Jacket: Armored/Military Tactical OFNR (Riser) Rated Standard Boot on each end Color: SM Blue

Structures

Custom OEM

Fiberinthebox offer customization solutions as below: Any Fiber Type- 10G OM4 optical fiber, 10G OM3 optical fiber, Single-mode 9/125 optical fiber, OM1 Multimode 62.5/125 optical fiber and OM2 Multimode 50/125 optical fiber for choice. Any connectors- FC, ST, LC, SC, MTRJ, E2000, MU etc connectors for choice. Any lengths- 1m, 2m, 3m, 4m ...100m... no limits. Label or Logo customs- we can print customer logo on fiber patch cable(as the following)

Specifications

Connector Type	ST to MU
Fiber Type	Singlemode 9/125
Length	3m
Endface Type（nm）	PC	UPC	APC
Insertion Loss（dB）	≤0.20	≤0.20	≤0.30
Repeatability（dB）	≤0.10
Exchangeability（dB）	≤0.20
Return Loss（dB）	≥45	≥50	≥60
Core Diameter	9.2µm ± 0.4µm @ 1310nm
Cladding Diameter	125µm ± 1µm
Outer Diameter	3.2mm ± 0.10mm
Max. Attenuation	0.5dB/km @ 1310nm 0.4dB/km @ 1550nm
Min Static Bend	10D
Min Dynamic Bend	15D
Tensile Load (long term)	200N
Tensile Load (short term)	400N
Crush (long term)	3000N/100mm
Operation Temperature(℃)	-25℃~ +70℃
Storage Temperature(℃)	-40℃~ +85℃
Durability(time)	>1000 times
Industry Standard	Telcordia GR-326-CORE
