SMA 906 Fiber Optic Connector
Description
SMA 906 has a stepped ferrule design, although it looks like SMA 905 connector. When two SMA 906 connector are mated together, the stepped ferrule design allows a full length alignment sleeve to be used, so the connection of SMA 906 connector has a lower inse ion loss than of SMA 905. When installing SMA 906 connector into SMA 905,a half length alignment sleeve must be installed on the end of SMA 906 ferrule,The ferrule design on the SMA 906 connector is engineered for large core fibers, it is widely used in medical, laser, Surgical, industrial, military, spectrometer applications etc.
Our standard SMA 906 connector with a stepped stainless steel ferrule, knurled coupling nut, black 3mm boot, shaped "C" clip, a black T-Style dust cap, and a metal crimp.
Our standard SMA 906 connector with a stepped stainless steel ferrule, knurled coupling nut, black 3mm boot, shaped "C" clip, a black T-Style dust cap, and a metal crimp.
Features
Threaded coupling nut One-piece stainless steel ferrule/body A full length and a half length alignment sleeve optional. Stainless steel ferrule available with custom drilled fiber I.D size from 100um to 1500um TIA and IEC complaint High temperature stability Good durability
Specification
Features
Industrial Medical/Surgical Laser Systems Spectrometers Industrial

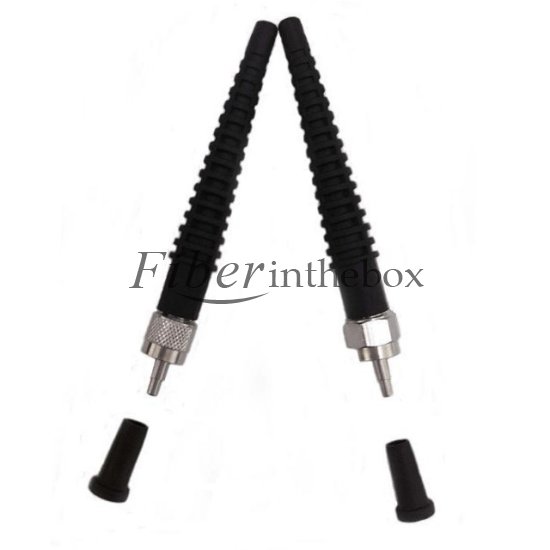

Picture Samples
Note: This price if for the fiber hole size of 127um. We can also off other hole size betweem 125-2500um, please conatct us at sales@fiberinthebox.com if you need other hole size without hesitation.
Fiberinthebox stocks a complete selection of SMA connector sizes to accommodate our full line of large core fibers, ranging from 125-2500um. Each connector package includes a fiber connector cap, crimp sleeve, and strain relief boot compatible with Ø3 mm furcation tubing.
