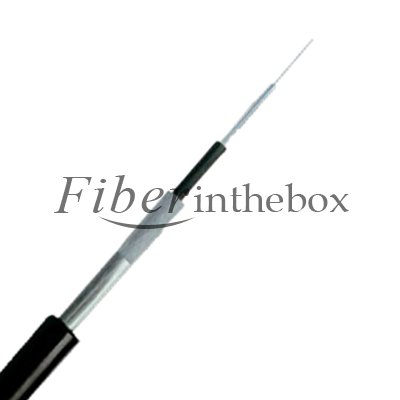

1 Fiber Single-mode PE Outer Jacket with KFRP Strength Member FTTH Armored Duct Cable

The price on the website is per meter price. The more, the cheaper.

The 1 fiber Single-mode FTTH Armored Duct cables from Fiberinthebox are designed for use in direct installation in villas and multi dwelling units. With two parallel KFRP strength members ensure good performance of crush resistance to protect the fiber. This cable is optical communication unit in the center so that it can realize the telephone, data, cable TV's combination of three nets and video monitoring. There was a layer of skin resistance hose and a layer of aluminum tape armored, let the cable can adapt to all kinds of bad environment and a ificial damage. External and internal jacket can makes the cables have excellent crush and impact resistant prope ies.

Features

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission prope y Ultraviolet protection, in order to avoid the sheath material is ultraviolet damage caused by agingNovel flute design, easily strip and splice, simplify the installation and maintenance Simplify installation and maintenanceSimple structure, lightweight and high practicabilityGood water resistance material to prevent cable water penetrationTwo sheath to protect the FTTH Duct cables from Rat bit and other damageLonger cable life

Specification

Fiber Type	Single-mode
Fiber core diameter	8.2μm
Wavelengths	1310nm/1550nm
Fiber Count	1
Environment	FTTH Duct Armored Cables
Attenuation	≤0.45dB/km (@1310nm)
	≤0.30dB/km (@1550nm)
Max. Tensile Strengths, Sho -Term	60N
Max. Tensile Strengths, Long-Term	30N
Max. Crush Resistance, Sho -Term	1500N
Max. Crush Resistance, Long-Term	600N
Static Bending Radius	10mm
Dynamic Bending Radius	20mm
Diameter(mm)	7
Armored	APL
Sheath Material	PE
Jacket Color	Black
Weight	52kg/km
Storage/Operating Temperature	-10°C to +70°C

Custom Information

Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count:Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
