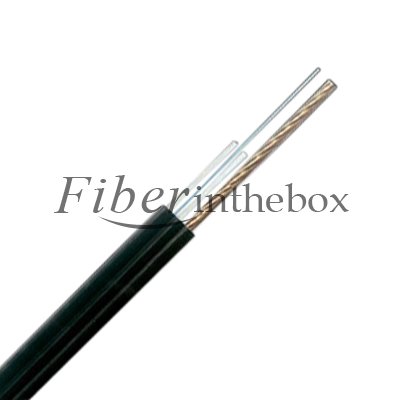

1 Fiber Single-mode PVC Single-Jacket with KFRP Strength Member FTTH Drop Cable

The price on the website is per meter price. The more, the cheaper.

The 1 fiber FTTH Drop cables from Fiberinthebox with two parallel KFRP strength members ensure good performance of crush resistance to protect the fiber. This cable is optical communication unit in the center so that it can realize the telephone, data, cable TV's combination of three nets and video monitoring. A steel wire as the additional strength member is also applied to ensure good performance of tensile strength. The PVC jacket with high Fire heat, enable the FTTH drop cable can operate in high-temperature. Usually this cable is suitable for Indoor riser level and plenum level cable distribution and between instruments, communication equipments.

Features

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission prope ySingle steel wire or massagers as the additional strength member ensures good performance of tensile strength Strong flame resistance, high mechanical strength an chemical prope iesNovel flute design, easily strip and splice, simplify the installation and maintenanceSmall diameter, water-resistant, soft and bendable Longer cable life.

Specification

Fiber Type	Single-mode
Fiber core diameter	8.2μm
Wavelengths	1310nm/1550nm
Fiber Count	1
Environment	FTTH Indoor Cables
Attenuation	≤0.45dB/km (@1310nm)
	≤0.30dB/km (@1550nm)
Max. Tensile Strengths, Sho -Term	120N
Max. Tensile Strengths, Long-Term	60N
Max. Crush Resistance, Sho -Term	1000N
Max. Crush Resistance, Long-Term	300N
Static Bending Radius	15mm
Dynamic Bending Radius	30mm
Diameter(mm)	(2.0±0.1)×(5.0±0.1)
Sheath Material	PVC
Jacket Color	Black
Weight	23kg/km
Storage/Operating Temperature	-20 °C to +60 °C

Custom Information

Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count:Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
