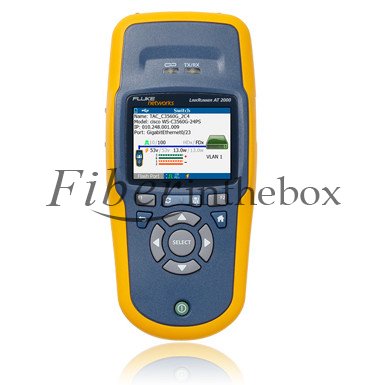

LinkRunner AT Network Auto-Tester is the fastest way to solve network connectivity problems. This rugged, handheld network tester takes the guesswork out of troubleshooting with its complete one-button AutoTest. AutoTest performs your required set of connectivity tests in 10 seconds, enabling you to accurately and quickly identify and solve network problems.
• Verify connections at 10M/100M/1G on copper and fiber:Instantly verify link status, connection type, and signal strength
• Nearest switch and VLAN information: Displays the VLAN and nearest switch model, slot and po
• Cabling: Test installed cabling and patch cords
• TruePower PoE testing: Quickly validate PoE performance by drawing actual power up to the 802.3at standard 25.5W
• Document results: Store up to 50 test results and download to your PC
• Instant-on: Boots in under 3 seconds; six-hour battery life
|
Model Number/Name |
Comparison Details (Accessories Description) |
|
LRAT-2000 |
Includes all LRAT-1000 features plus: fiber, TruePower™ PoE loading, IPv6, reflection and 50 repo s instead of 10. LRAT-2000 includes: LinkRunner AT 2000 tester with Li-ion battery (until January 31, 2013), Wireview Cable ID #1, LinkRunner Manager software CD, USB cable, RJ-45 coupler, Getting Sta ed Guide and soft case |
|
ACK-LRAT2000 |
Network Tech Troubleshooting Kit w/ACK,LRAT-2000 includes: AirCheck tester, LinkRunner AT 2000 tester, AirCheck external directional antenna, spare Li-ion battery for either AirCheck or LinkRunner, IntelliTone Pro 200 probe, WireView 2-6 cable ids, LinkRunner AT holster, AirCheck holster and deluxe carrying case |
|
LRAT-2000-FTK |
Includes LinkRunner AT 2000, SimpliFiber Pro optical power meter, 850/1300 multimode source, VisiFault VFL, FT120 FiberViewer, FindFiber Remote ID source, and carrying case; SC, ST, and LC power meter adapters |
|
LRAT-2000-KIT |
LinkRunner AT 2000 Extended Test Kit includes: LinkRunner AT 2000, IntelliTone Pro 200 Probe, WireView Cable IDs #1-6, LinkRunner Manager software CD, test accessory soft pouch, USB cable, LinkRunner AT Getting Sta ed Guide, IntelliTone Pro Getting Sta ed Guide, one 9V alkaline battery, packaged in a deluxe Fluke Networks carry case. |
|
LRAT-1000 |
LinkRunner AT 1000 Network Auto-Tester includes: LinkRunner AT 1000 tester with Li-ion battery (until January 31, 2013), LinkRunner Manager software CD, USB cable, LinkRunner AT Getting Sta ed Guide, and soft case |
.jpg)
| Environmental | |
| Operating Temperature and Relative Humidity | 32ºF to 113ºF (0ºC to +45ºC) Note: The battery will not charge if the internal temperature of the tester is above 113ºF (45ºC) |
| Operating Relative Humidity (% RH without condensation) | 90% (50ºF to 95ºF; 10ºC to 35ºC) 75% (95ºF to 113ºF; 35ºC to 45ºC) |
| Storage Temperature | -4ºF to 140ºF (-20ºC to +60ºC) |
| Shock and Vibration | Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop |
| Safety | EN 61010-1 2nd edition |
| Safety (LR-AT 2000 only) | EN/IEC 60825-1:2007, EN/IEC 60825-2:2004+ A1:2007 (LRAT- 2000 only) |
| Altitude | 4,000 m; Storage: 12,000 m |
| EMC | FCC Part 15 Class A, EN 61326-1 |
| Certifications and Compliance | Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association |
| General | |
| Media Access; Copper | RJ-45: 10BASE-T, 100BASE-TX, 1000BASE-T and PoE (IEEE 802.3af and 802.3at); 100BASE FX and 1000 |
| Media Access; Fiber | SFP Adapter Port supports 100BASE-FX and 1000BASE-LX/ SX/ZX (LRAT-2000 Only) |
| Cable Tests | Pair lengths, opens, shorts, splits, crossed, straight through and cable ID |
| Tone Generator | IntelliTone digital tone: [500 KHz]; analog tones: [400 Hz, 1 KHz] |
| Dimensions | 3.5 in x 7.8 in x 1.9 in (8.9 cm x 19.8 cm x 4.8 cm) |
| Weight | 18 oz (0.5 kg) |
| Battery | Removable, rechargeable lithium-ion battery pack (18.5 Watt-hrs) (included with introductory special) |
| Battery Life | Typical operating life is 6 hours; Typical charge time is 3 hours |
| External AC Adapter/Charger | AC input 90 to 264 Vac 48 to 62 Hz input power DC output 15 Vdc at 1.2 amps |
| Display | 2.8 in color LCD (320 x 240 pixels) |
| Keypad | 12-key elastomeric |
| LEDs | 2 LEDs (Link and Receive/Transmit indicators) |
| Host Interface | USB 5-pin mini-B |
| LinkRunner Manager Software | |
| Supported Operating Systems | Windows® Vista, Windows® XP, Windows® 7 |
| Processor | 400 MHz Pentium processor or equivalent (minimum); 1 GHz Pentium processor or equivalent (recommended) |
| RAM | 96 MB (minimum); 256 MB (recommended) |
| Hard Disk | Up to 500 MB of available space may be required |
| Display | 1024 x 768 high color, 32-bit (recommended) |
