Description
Troubleshooting network connectivity problems can be a daunting and time-consuming task. Without the right tool, network techs can spend hours of unnecessary time with trial and error guesswork trying to isolate the problem.

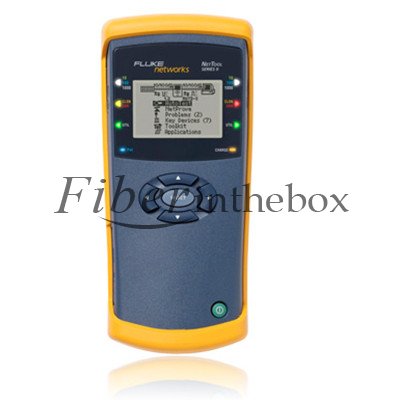

Fluke Networks has put an end to the guessing game with the NetTool Series II Inline Network Tester. NetTool combines powerful NetProve diagnostics, inline Gigabit vision, VoIP Phone PC configuration testing in one palm-sized tool, so you'll have everything you need to quickly resolve even the toughest connectivity problem. Plus, with the monitoring and authentication option, you'll have the power to identify po -based security threats and maintain user connectivity in 802.1x environments.
Features
Monitoring and Authentication NetProve Diagnostics Inline Functionality VoIP Test and Troubleshoot PoE Measurements IntelliTone Digital Signaling Repo s Ease of UseScreen Shots
Features in Detail
NetProve diagnostics - isolate device and application connectivity issues in seconds Inline Gigabit vision - quickly troubleshoot network problems with powerful inline vision into 10/100/Gig traffic between switches, PCs, IP phones and other devices Monitoring and authentication - identify spyware, malware, and viruses with po monitoring; troubleshoot authentication issues with 802.1x log VoIP troubleshooting - connect inline for visibility into VoIP calls to quickly diagnose IP phone boot-up and call control problems and to measure key call quality metrics PoE Measurements - verify readiness of PoE systems and troubleshoot PoE device problems Spot available network resources - See MAC and IP addresses, subnet and services offered by active servers, routers and printers IntelliTone digital signaling - quickly and safely locate cables on active network
Family Features Comparison:
| Features | Series II Kit | Series II Pro VoIP | Series II Pro | 10/100 Pro VoIP | 10/100 Pro |
| 1000Mbps Ethernet interface | Yes | Yes | Yes | ||
| Inline device and traffic analysis | Yes | Yes | Yes | Yes | Yes |
| NetProve device and application connectivity diagnostics | Yes | Yes | Yes | ||
| Po monitoring and authentication | Yes | Option | Option | ||
| VoIP testing, monitoring and troubleshooting | Yes | Yes | Option | Yes | Option |
| Inline PoE voltage measurement and pair identification | Yes | Yes | Yes | Yes | Yes |
| IntelliTone digital toning | Yes | Yes | Yes | ||
| Device and network repo ing | Yes | Yes | Yes | Yes | Yes |
| PC interface for data transfer | USB | USB | USB | Serial | Serial |
| Internal NimH battery charging | Yes | Option | Option | ||
| IntelliTone 200 Probe + Wireview cable IDs #2-6 | Yes | Option | Option |
Models & Accessories
| Model Number/Name | Accessory details |
| NTS2-VOIP | NetTool Series II Pro VoIP includes 10/100/1000Mbps inline, VoIP option, NetProve diagnostics, IntelliTone toning, NetTool Connect PC software, WireView Wiremapper #1, set of 4 AA alkaline batteries, USB to mini-USB cable, Ethernet cable, Getting Sta ed Guide, CD with Multilanguage User Manuals, and soft carrying case |
Application Drawing
Specifications
| NetTool Series II General Specs | |
| Media | 10/100/1000 Base -TX and PoE (802.3af) |
| Access | |
| Cable Tests | Internal wiremap. WireView Cable ID, cable length, opens, shorts, and split pairs |
| Cable Toner | IntelliTone or Analog (each with two songs) |
| Cable Length | Accuracy is +/- (10% or reading plus 1 meter) |
| Ports | Shielded Hub/NIC connector (RJ-45) and USB input jack |
| Interface | Push button navigation of icon/menu-driven view |
| Battery | Removable alkaline batteries or optional rechargeable NIMH AA batteries |
| Dimensions | 19.0 cm x 8.9 cm x 4.4 cm (7.5" x 3.5" x 1.75") |
| Weight | 0.54 kg (1 lb 3 oz.) |
| Warranty | One year (extended warranty available) |
| LED Indicators (8) | 10/100/1000 (Link), CLSN/ERR (Collision/error), UTIL (Utilization), PoE, and CHARGE |
| Environmental Requirements | |
| Operating Temperature | 10 °C to 30 °C with up to 95% Relative Humidity |
| 10 °C to 40 °C with up to 75% Relative Humidity | |
| Non-Operating Temperature | -20 °C to +60 °C |
| Approvals | The Fluke NetTool has the following approvals. European standard EN 60950, CSA/CAN C22.2 No. 950, and UL 1950. |
| Approvals (Accessories) | The optional Universal AC adaptor for NetTool has UL, CSA, and TÜV approvals or other approvals valid in the USA, Canada, and Europe |
| Electromagnetic Interference | The Fluke NetTool complies with European standard EN 61326 Class B. |
| Certification | Complies with European CE directive: EMC directive 89/336/EEC and low voltage directive 73/23/EEC. |
| Connection to public telephone network | NetTool should never be connected to the public telephone network. |
