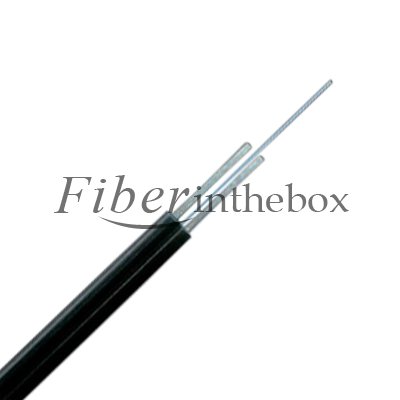

1 Fiber Single-mode PVC Single-Jacket with KFRP Strength Member FTTH Indoor Cable
The price on the website is per meter price. The more, the cheaper.
The 1 fiber FTTH indoor cables with PVC jacket from Fiberinthebox are designed for use in horizontal, ve ical, and corner cabling. With two parallel KFRP strength members to ensure good performance of crush resistance and protect the fiber. This cable is optical communication unit in the center so that it can realize the telephone, data, cable TV's combination of three nets and video monitoring. Usually, this cable is suitable for indoor and outdoor along the wall, roof, sandwich and duct connected directly cloth optical fiber cable to standard and solid structure design produce communication equipment tail fiber and activity connecting line can be applied directly to the connection between the equipment.
Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission prope y. Novel flute design, easily strip and splice, simplify the installation and maintenance. Small diameter, water-resistant, soft and bendable. PVC sheathed flame resistance is very good, high mechanical strength, good electric insulation Light and hard, not conductive, high mechanical strength, recycling less, corrosion resistance Longer cable life.
Specification
Fiber Type | Single-mode |
Fiber core diameter | 8.2μm |
Wavelengths | 1310nm/1550nm |
Fiber Count | 1 |
Environment | FTTH Indoor Cables |
Attenuation | ≤0.45dB/km (@1310nm) |
≤0.30dB/km (@1550nm) | |
Max. Tensile Strengths, Sho -Term | 60N |
Max. Tensile Strengths, Long-Term | 30N |
Max. Crush Resistance, Sho -Term | 1000N |
Max. Crush Resistance, Long-Term | 300N |
Static Bending Radius | 15mm |
Dynamic Bending Radius | 30mm |
Diameter(mm) | (2.0±0.1)×(3.0±0.1) |
Sheath Material | PVC |
Jacket Color | Black |
Weight | 12kg/km |
Storage/Operating Temperature | -20 °C to +60 °C |
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count:Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
