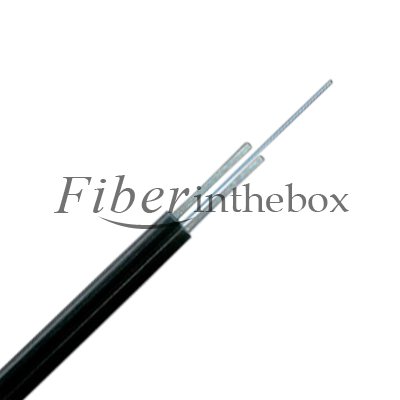

2 Fibers Single-mode LSZH Single-Jacket with Metal Strength Member FTTH Indoor Cable

The price on the website is per meter price. The more, the cheaper.

The 2 fibers FTTH indoor cables with LSZH jacket from Fiberinthebox are designed for use in horizontal, ve ical, and corner cabling. With two parallel Metal strength members to ensure good performance of crush resistance and protect the fiber. This cable is optical communication unit in the center so that it can realize the telephone, data, cable TV's combination of three nets and video monitoring. Usually, this cable is suitable for indoor and outdoor along the wall, roof, sandwich and duct connected directly cloth optical fiber cable to standard and solid structure design produce communication equipment tail fiber and activity connecting line can be applied directly to the connection between the equipment.

Features

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission prope y. Novel flute design, easily strip and splice, simplify the installation and maintenance. Small diameter, water-resistant, soft and bendable. Low smoke, low poison, low corrosion, high flame retardant. zero halogen material, environmental protection. Longer cable life.

Specification

Fiber Type	Single-mode
Fiber core diameter	8.2μm
Wavelengths	1310nm/1550nm
Fiber Count	2
Environment	FTTH Indoor Cables
Attenuation	≤0.45dB/km (@1310nm)
	≤0.30dB/km (@1550nm)
Max. Tensile Strengths, Sho -Term	60N
Max. Tensile Strengths, Long-Term	30N
Max. Crush Resistance, Sho -Term	1000N
Max. Crush Resistance, Long-Term	300N
Static Bending Radius	15mm
Dynamic Bending Radius	30mm
Diameter(mm)	(2.0±0.1)×(3.0±0.1)
Sheath Material	LSZH
Jacket Color	Black
Weight	15kg/km
Storage/Operating Temperature	-20 °C to +60 °C

Custom Information

Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count:Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
