12 Fibers Single-Mode Distribution Indoor/Outdoor Cable

The price on the website is per meter price. The more, the cheaper.

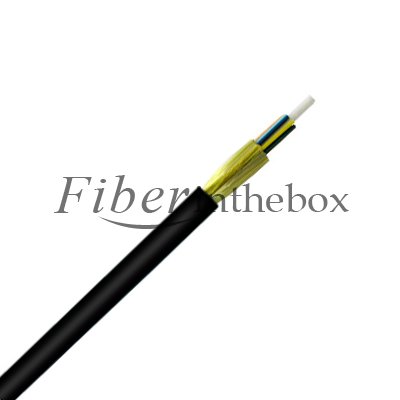

The 12 Fibers Single-Mode Distribution Indoor/Outdoor Cables from Fiberinthebox are lightweight, has a low bending radius and is suitable for both indoor and outdoor installations. The cable design combined with the tight-buffered fibres offer quick and easy cable and fibre preparation and the ability to directly terminate the fibres. This cable can be run outdoors as well as indoors. Since the cable does not contain the petroleum-based gel used in most outdoor cables as a water block, the cable can be run indoors at any distance. The cable can be terminated with connectors at one or both ends in conjunction with various styles of fan-out kits at any breakout length. This cable is all -dielectric and consists of 900μm tight buffered fibers surrounded by aramid yarn strength members and a central strength member. It is ideal for installation in indoor/outdoor, LAN and distribution networks.

Features

Lightweight and easy to handle Ideal for installation in indoor/outdoor, LAN and distribution networks?All dielectric structure protects it from electromagnetic influence Jacket is anti-corrosion, anti-water, anti-ultraviolet radiation, harmless to environment etc; Buffer is soft, flexible, easy to splice, and with big capacity data transmission Small bending radius and flexible for ease of installation, especially in confined spaces Fibers can be directly terminated, no need for fan-out kits or splicing thereby reducing lossesExcellent performance of anti-torsion

Specification

Fiber Type	Single-mode
Fiber Core Diameter	8.2µm
Wavelengths	1310nm/1550nm
Fiber Count	12
Environment	Indoor/Outdoor Cables
Application	General Purpose Horizontal / Ve ical Riser  inoodr,  Outdoor in conduit
Cable Type	Tight-Buffered
Flame Rating	Riser (OFNR)
Tight Buffer Color	Black
Outer Jacket Color	Black
Max.Tensile Strengths,Sho -Term	1300N
Max.Tensile Strengths,Long-Term	300N
Weight	54kg/km
Storage Temperature	-20°C to 75°C
Installation Temperature	-20°C to 75°C
Operation Temperature	-20°C to 75°C

Custom Information

Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: Custom specified FiberType: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
