12 Fibers Single-mode Gel-Filled Ribbon Indoor/Outdoor Riser Cable

The price on the website is per meter price. The more, the cheaper.

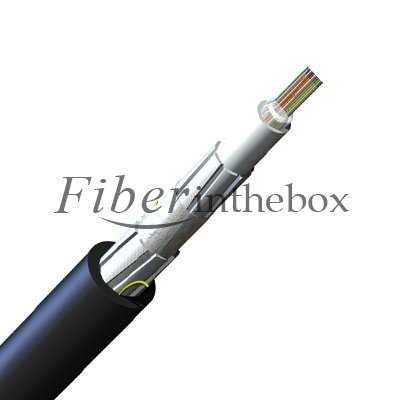

The 12 Fibers Single-mode Gel-Filled Ribbon Indoor/Outdoor Riser Cables from Fiberinthebox are lightweight cables designed for indoor/outdoor installations such as campus backbones in aerial, duct and riser applications. The cables consist of a ribbon stack of several fibers ribbons within a gel-filled central buffer tube. The precise fiber and ribbon geometries result in excellent mass splicing yields. These cables are available in preconnectorized assemblies which made easy field installation and reduced labor costs. A UV-resistant, flame-retardant jacket allows added flexibility in placing this cable outdoors, whether it is an aerial, duct or direct-buried application, indoor general horizontal or riser applications.

Features

Totally Gel-Filled cableColor-coded fibers make quick and easy identification The precise fiber and ribbon geometries result in excellent mass splicing yields UV-resistant, flame-retardant jacket is rugged, durable and easy to strip Easy handling

Specification

Fiber Type	Singlemode
Fiber Core Diameter	8.2µm
Wavelengths	1310nm/1550nm
Fiber Count	12
Environment	Indoor/Outdoor Cables
Application	Aerial, Direct Buried, Duct, General Purpose Horizontal, Ve ical Riser
Cable Type	Ribbon
Flame Rating	Riser (OFNR)
Tight Buffer Color	Blue, Orange
Outer Jacket Color	Black
Max.Tensile Strengths,Sho -Term	2700N
Max.Tensile Strengths,Long-Term	600 N
Min. Bend Radius Installation	174mm
Min. Bend Radius Operation	116mm
Weight	162kg/km
Storage Temperature	-40°C to 70°C
Installation Temperature	-10°C to 60°C
Operation Temperature	-40°C to 70°C

Custom Information

Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
