144 Fibers Multimode Plenum Unitized Tight-Buffered Indoor Cable

The price on the website is per meter price. The more, the cheaper.

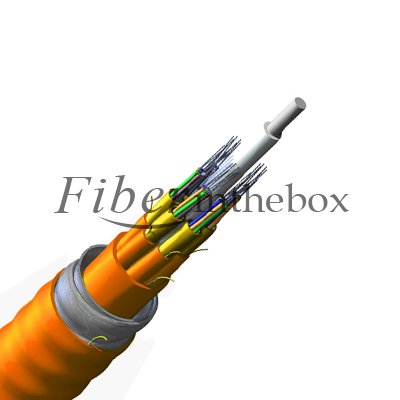

The 144 fibers Multimode Plenum Unitized Tight-Buffered Indoor Cables from Fiberinthebox are available for all inter and intra-building cables. The interlocked armor design uses a spiral wrapped interlocking metal tape for superior crush resistance while ensuring maximum flexibility, also one-step installation and over seven times the crush protection of unarmored cables. Cables utilizing this armor option are ideally suited for routing inside plenum areas or in riser shafts. They use individually jacketed buffered fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into jacketed subunits and surrounded by a dielectric central member. With a flame-retardant outer jacket, this cable is pa icularly useful for heavy traffic or more challenging mechanical exposure conditions.

Features

Buffered fibers, easy and consistent stripping6 or 12 fibers jacketed subunits, quick and easy identificationFlame-Retardant safety, rugged and durable under stress Eliminates need for ductwork or conduit Easy cable installation

Specification

Fiber Type	Multimode
Fiber Core Diameter	50μm/62.5μm
Wavelengths	850nm/1310nm
Fiber Count	144
Environment	Indoor Cables
Application	General Purpose Horizontal, Ve ical Riser
Cable Type	Tight-Buffered
Flame Rating	Riser (OFCR)
Subunit Color	Aqua
Max. Tensile Strengths, Sho -Term	1320N
Max. Tensile Strengths, Long-Term	400N
Min. Bend Radius Installation	354mm
Min. Bend Radius Operation	236mm
Weight	430 kg/km
Cable Length	1km
Storage Temperature	-40 °C to 70 °C
Installation Temperature	-10 °C to 60 °C
Operation Temperature	-20 °C to 70 °C

Custom Information

Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified.Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specifiedFiber Count: 2 ~ 288 fibers or custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: 1km, 2km, 5km, 10km, 30km or Custom specified

Specifications

Fiber Type	Multimode
Fiber Core Diameter	50μm/62.5μm
Wavelengths	850nm/1310nm
Fiber Count	144
Environment	Indoor Cables
Application	General Purpose Horizontal, Vertical Riser
Cable Type	Tight-Buffered
Flame Rating	Riser (OFCR)
Subunit Color	Aqua
Max. Tensile Strengths, Short-Term	1320N
Max. Tensile Strengths, Long-Term	400N
Min. Bend Radius Installation	354mm
Min. Bend Radius Operation	236mm
Weight	430 kg/km
Cable Length	1km
Storage Temperature	-40 °C to 70 °C
Installation Temperature	-10 °C to 60 °C
Operation Temperature	-20 °C to 70 °C
