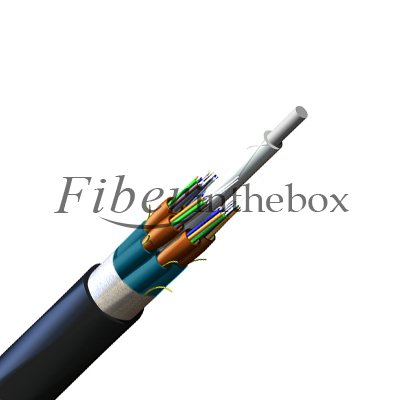

48 Fibers Single-mode Unitized Tight-Buffered Indoor/Outdoor Riser Cable

The price on the website is per meter price. The more, the cheaper.

The 48 Fibers Single-mode Unitized Tight-Buffered Indoor/Outdoor Riser Cables from Fiberinthebox are ideal for aerial, duct and direct-buried applications with no need for a transition splice when entering the building. They facilitate easier termination for low-fiber-count applications in the local area network (LAN) and eliminate need for fan-out kits as the tight-buffered construction. The small diameter and bend radius of the cable allow for easy installation that the installer can recognize savings from the lower costs of terminating tight buffered cables. With UV-resistant, flame-retardant jacket, these cables are rugged, durable and easy to strip.

Features

Cables are water blocked and meet water penetrationWith riser rating, this cable can be used in all environments: riser, general inside plant, outside plant Small diameter, quick and easy to be installed Easy handling

Specification

Fiber Type	Single-mode
Fiber Core Diameter	8.2µm
Wavelengths	1310nm/1550nm
Fiber Count	48
Environment	Indoor/Outdoor Cables
Application	Aerial, Direct Buried, Duct, General Purpose Horizontal, Ve ical Riser
Cable Type	Tight-Buffered
Flame Rating	Riser (OFNR)
Tight Buffer Color	Blue, Orange
Outer Jacket Color	Black
Max.Tensile Strengths,Sho -Term	2670N
Max.Tensile Strengths,Long-Term	800N
Min. Bend Radius Installation	27.9mm
Min. Bend Radius Operation	18.6mm
Weight	279kg/km
Storage Temperature	-40°C to 70°C
Installation Temperature	-10°C to 60°C
Operation Temperature	-40°C to 70°C

Custom Information

Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: Custom specified FiberType: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
