Max. 144 Fiber Fusion Splices 304SS Fiber Optic Cross Connection Floor Mount Cabinet

Description

This Fiber Distribution Box has an IP 65 rating so it can be used both outdoors as well as indoor scenarios.
The Outdoor Outdoor Fiber Optic Cross connection Cabinets is an outdoor optical equipment that is especially designed for outdoor optical nodes in access net work. In ce ain situations, it is necessary to mount this box on the exterior of a building or a telecommunication pole. The Fiber Distribution Box needs to beeasily accessible and manageable in size. The dimension could be customized by client.
If necessary, the box can be locked to keep the splices secure.

Application

This floor-standing fiber distribution box is used in buildings to splice incoming outside plant cables to outgoing customer premises cables

Features

Impo ed cabinet body with high intensity and anti-erosion performance. It is able to counter abrupt climate change and influences of extreme environment. Protection level is IP65 Capacity can be flexibly customized as required. Installation is quick and convenient Adapter panel slants on the operation facia which will prevent it from being scotched by light as well ensuring the curve radius of the optic fiber. Built-in direct splice unit is capable for providing direct connection function. Perfect design of fiber wiring routing could facilitate management and maintenance of fibers Multiple installation options,including floor and wall installations With secure and reliable fastening and grounding protection devices for the optic fiber Applicable to strap-shaped and non-strap shaped fibers

Material

Cold-roll steel or stainless steel 304 material Color: Body Grey Outside dimensions: 1035*550*300 mm (L x W x D)Net Weight: 50KG

Operation Conditions

Work Temperature: -45-+85C Relative humidity:≤85%(+30°C) Atmospheric pressure: 70~106 KPa Returnloss:≥45dB (PC),55dB(UPC),60dB(APC) Isolation resistance(between frame and protection grounding):>1000 MOHM /500V(DC)

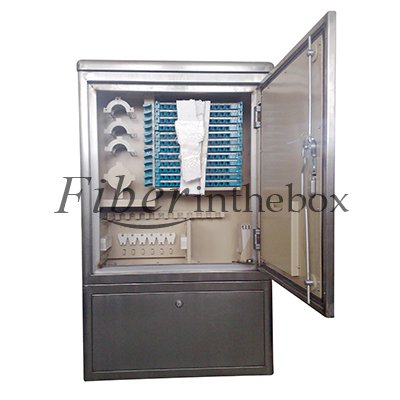

Sample Pictures
