Max. 576 Fiber Fusion Splices SMC Fiber Optic Cross Connection Cabinet with Double-sided Side Opening

Description

This Fiber Distribution Box has an IP 65 rating so it can be used both outdoors as well as indoor scenarios.
The Indoor/Outdoor Fiber Distribution Box is typically used in buildings to splice incoming Outside Plant (OSP) optical fiberal cables into customer premises cables. In ce ain situations, it is necessary to mount this box on the exterior of a building or a telecommunication pole. The Fiber Distribution Box needs to beeasily accessible and manageable in size. The dimension could be customized by client.
If necessary, the box can be locked to keep the splices secure.

Application

This floor-standing fiber distribution box is used in buildings to splice incoming outside plant cables to outgoing customer premises cables

Features

Robust modular construction Available with Lock & Keys Maximum 48 splice trays ( 576 fibers) High intensity and anti-erosion performance Able to counter abrupt climate change and extreme environment Capacity can be flexibly customized as required Installation is quick and convenient Built-in direct splice unit is capable for providing direct connection function. Perfect design of fiber wiring routing could facilitate management and maintenance of fibers With secure and reliable fastening and grounding protection devices for the optic fiber Applicable to strap-shaped and non-strap shaped fibers

Material

Box is made of SMC material Color: Body Grey

Technical Parameters

Nominal work wave-length: 850nm, 1310nm, 1550nm              Operating temperature: -5°C-+40°C Storage temperature: -40°C +70°C Relative humidity:≤85%(+30°C) Atmospheric pressure: 70~106 KPa Inse ion loss: ≤0.2dB Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC) Isolation resistance:≥1000MΩ/500V(DC) Durability:>1000 times Anti-voltage strength: ≥3000V(DC)/1min

Specification

Outside dimensions: 1450×760×540mm(L x W x D) Model: outdoor Wall-mount Type, suit for SC,FC adapter, 2m length pigtail, and 2-3m patch cord.

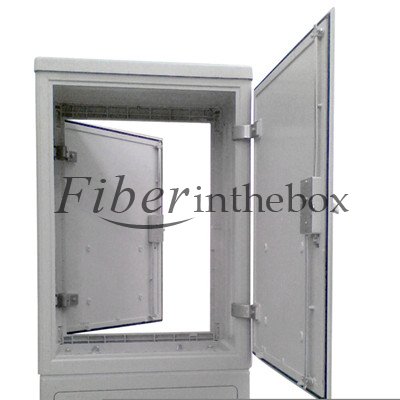

Sample Pictures



                                                                                                     This price is not including the Splice Tray
