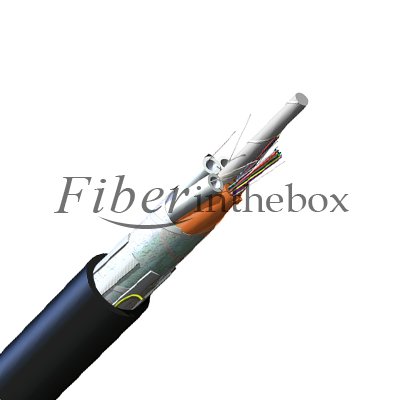

24 Fibers Single-mode Plenum Loose Tube Indoor/Outdoor Cable

The price on the website is per meter price. The more, the cheaper.

The 24 Fibers Single-mode Plenum Loose Tube Indoor/Outdoor Cables from Fiberinthebox are flame-retardant and plenum-rated cables suitable for installation in interbuilding and intrabuilding backbones in aerial, duct and riser or plenum applications. The plenum rating of this cable eliminates the need to transition splice when entering the building and minimizes routing restrictions once inside the building. The loose tube design offers mechanical ruggedness and environmental durability while the all-dielectric cable construction requires no grounding or bonding. The cables use dry waterblocking technology within the tubes and under the cables’ jacket. They are the fire-rated cables designed to withstand the rigors of the outside plant environment.

Features

Color-coded fibers, quick and easy identificationAll-dielectric construction requires no grounding or bonding Compact, water blocked, plenum rated, flexible loose tube design of all dielectric construction allows for installation in any outside plant or interior space. Plenum rating enables installation to go directly from outside plant to riser shaft or through plenum spaces Small diameter and bend radius facilitate installation in tight spaces Loose tube plenum design provides maximum cable route flexibility

Specification

Fiber Type	Singlemode
Fiber Core Diameter	8.2µm
Wavelengths	1310nm/1550nm
Fiber Count	24
Environment	Indoor/Outdoor Cables
Application	Aerial, Direct Buried, Duct, General Purpose Horizontal, Ve ical Riser
Cable Type	Loose Tube
Flame Rating	Plenum (OFCP)
Tight Buffer Color	Blue, Orange
Outer Jacket Color	Black
Max.Tensile Strengths,Sho -Term	2700N
Max.Tensile Strengths,Long-Term	810N
Min. Bend Radius Installation	167mm
Min. Bend Radius Operation	111mm
Weight	127kg/km
Storage Temperature	-40°C to 70°C
Installation Temperature	-10°C to 60°C
Operation Temperature	-40°C to 70°C

Custom Information

Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
