1 Fiber Multimode Single-Tube Riser Indoor/Outdoor Cable

The optical cable price on the website is per meter price. The more, the cheaper.

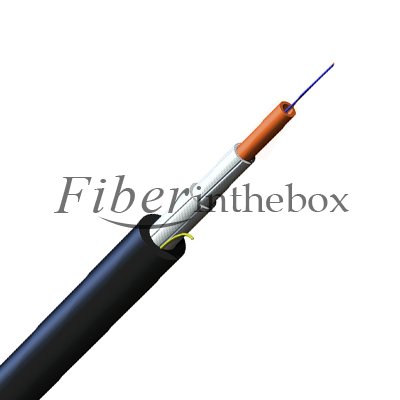

The 1 Fiber Multimode Single-Tube Riser Indoor/Outdoor Cables from Fiberinthebox are ideal for interbuilding and intrabuilding backbones in aerial, duct and riser applications. These single loose tube cables offer a low cost alternative to traditional stranded loose tube cables as it allow a direct transition from indoor to outdoor applications. With a riser rating, there is no need for a transition splice when entering the building. The loose tube design offers reliable transmission performance over a broad temperature range. The buffer tubes and fibers in each tube are color-coded for quick, easy identification. These cables are protected against water penetration by innovative waterblocking tapes and yarns that swell to absorb water.

Features

Riser rating, no transition splices when entering buildingsReduces cable prep and installation time Color-coded fibers, quick and easy identification Installation of more fibers in less space Flame-retardant jacket, rugged, durable and easy to strip Easy handling Longer cable life

Specification

Fiber Type	Multimode
Fiber Core Diameter	50/125,62.5/125µm
Wavelengths	850nm/1300nm
Fiber Count	1
Environment	Indoor/Outdoor Cables
Application	Aerial, Direct Buried, Duct, General Purpose Horizontal, Ve ical Riser
Cable Type	Loose Tube
Flame Rating	Riser (OFNR)
Tight Buffer Color	Blue, Orange
Outer Jacket Color	Black
Max.Tensile Strengths,Sho -Term	1350N
Max.Tensile Strengths,Long-Term	400N
Min. Bend Radius Installation	111mm
Min. Bend Radius Operation	37mm
Weight	56kg/km
Storage Temperature	-40°C to 70°C
Installation Temperature	-10°C to 60°C
Operation Temperature	-40°C to 70°C

Custom Information

Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified. Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: Custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: Custom specified
