Description

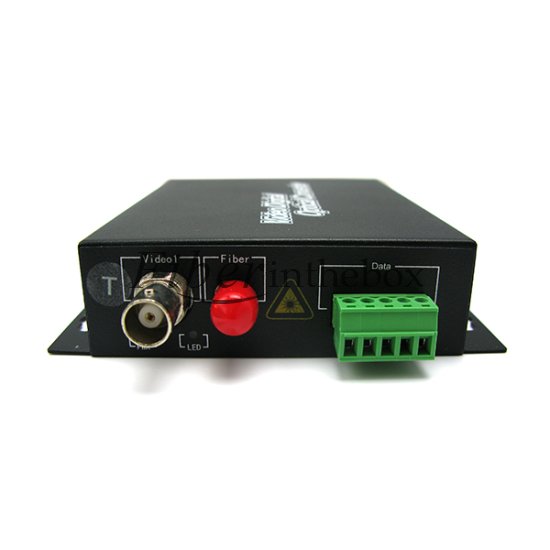

Our video, data and audio transmitter and receiver suppo simultaneous transmission of several channels of 8-bit digitally encoded video. The modules are compatible with NTSC, PAL and SECAM CCTV camera systems and suppo RS-485, RS422 and RS232 data protocols. Plug and Play design ensures convenience of installation and operation.
Key Features:
Suppo Point-to-Point or Daisy-Chain connection Uncompressed Digital Composite Video over one fiber Compatible with all PAL, NTSC,SECAM Video Systems Data suppo RS485(2-wire or 4-wire),RS232,RS422, Contact Closure Single-Mode Fiber Suppo for Distances up to 100 km LED Status Provide Rapid Indication of Operating Parameters No EMI or RFI and no ground loops Suppo Coarse Wavelength Division Multiplexing (CWDM) Stand alone Produce according to customer's specifications,providing OEM
Features
8-Bit Uncompressed Video Transmission Compatible with NTSC, PAL, or SECAM CCTV Suppo s RS-232, RS-422, and RS-485 Data Protocols WDM for Highest Quality Video Transmission No EMI, RFI, Cross Talk, and Ground Loop No Electrical or Optical Adjustments Required LED Indicators for Instant System Monitoring Standalone or Rackmount Transmit up to 30 km without Optical Attenuation Simultaneous Transmission of Video and Data
Applications
Technical Specifications
| VIDEO | CONNECTORS | ||
| Number of Channels | 1, 2, 4, 8, 16, 24, 32, 48, 64 optional | Video | 75Ω BNC (Gold Center Pin) |
| Input/output impedance | BNC 75Ω | Optical | FC Standard; ST/SC optional |
| Input/output Compatibility | PAL,NTSC,SECAM | Audio | Terminal Block |
| Input/output voltage | 1.0 Volt p-p | Data | Terminal Block |
| Bandwidth | 6.5MHZ | Standalone power | Screw terminal block |
| Bit Resolution | 8-Bit Digital Transmission | Rack Power | AC line card |
| Differential Gain | < 1.5% | ELECTRICAL & MECHANICAL | |
| Differential Phase | < 1.5° | Input Power Requirements | DC 5V@2A |
| Tilt | < 5% | Power Adapter | AC 100V~240V |
| Signal-to-Noise Ratio(SNR) | > 67 dB | Power Consumption | < 3W |
| AUDIO | Bit Error Rate | 1.00E-08 | |
| Number of Channels | 1, 2, 4, 8, 16 optional | DATA | |
| Audio in/output impedance | 600Ω Unbalanced | Number of Channels | 1, 2, 4, 8, 16 optional |
| Audio in/output Level | 6 dBm | Interface Po | RJ45 |
| Signal-to-Noise Ratio (SNR) | >80 dB | Data Formats | RS485(2-wire or 4-wire), RS232, RS422, Contact Closure |
| Bit Resolution | 24-Bit | Data Rate | DC to 115.2Kbps |
| Bandwidth | 20Hz~20KHz | Bit Error Rate | 1.00E-08 |
| ENVIRONMENTAL | ETHERNET/IP | ||
| Operating Temperature | -45 °C~ +75 °C | Standard | Ethernet IEEE 802.3 (Auto-Negotiation) |
| Relative Humidity | 0%~95% (non-condensing) | Data Rate | 10/100 Mbps |
| Storage Temperature | -45 °C~ +85 °C | Connector | RJ-45, Auto MDI/MDI-X |
| MTBF | >100,000 hours | ||
