8 Fibers Double-Jacket Loose TubeOutdoor Cable
The price on the website is per meter price. The more, the cheaper.

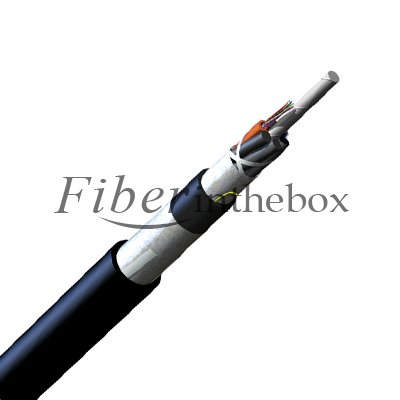

The 8 Fibers Double-Jacket Loose Tube Outdoor Cables from Fiberinthebox are designed for duct and aerial (lashed) installation. The loose tubes are filled with a water-resistant filling compound, andthe loose tube design offers reliable transmission performance over a broad temperature range.With two medium-density polyethylene jackets, this cable is an excellent choice for applications requiring the added mechanical and environmental protection, and it is rugged, durable and easy to stripwhileproviding superior protection against UV radiation, fungus, abrasion and other environmental factors.
Features
Small diameter & light weight extend installation lengthExclusive Color-coded fibers, quick and easy identification Suitable for aerial lashed, duct, & direct buried installation Easy handling Longer cable life
Specification
| Fiber Type | Single-mode |
| Fiber Core Diameter | 8.2μm |
| Wavelengths | 1310nm /1550nm |
| Fiber Count | 8 |
| Environment | Outdoor Cables |
| Application | Aerial, Duct |
| Cable Type | Loose Tube |
| Tape | Water-swellable |
| Outer Jacket Color | Black |
| Max. Tensile Strengths, Sho -Term | 2700N |
| Max. Tensile Strengths, Long-Term | 890N |
| Min. Bend Radius Installation | 188mm |
| Min. Bend Radius Operation | 125mm |
| Weight | 107kg/km |
| Cable Length | 1km |
| Storage Temperature | -40 °C to 70 °C |
| Installation Temperature | -30 °C to 70 °C |
| Operation Temperature | -40 °C to 70 °C |
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified.Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specifiedFiber Count: custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: 1km, 2km, 5km, 10km, 30km or Custom specified
Specifications
| Fiber Type | Single-mode |
| Fiber Core Diameter | 8.2μm |
| Wavelengths | 1310nm /1550nm |
| Fiber Count | 8 |
| Environment | Outdoor Cables |
| Application | Aerial, Duct |
| Cable Type | Loose Tube |
| Tape | Water-swellable |
| Outer Jacket Color | Black |
| Max. Tensile Strengths, Short-Term | 2700N |
| Max. Tensile Strengths, Long-Term | 890N |
| Min. Bend Radius Installation | 188mm |
| Min. Bend Radius Operation | 125mm |
| Weight | 107kg/km |
| Cable Length | 1km |
| Storage Temperature | -40 °C to 70 °C |
| Installation Temperature | -30 °C to 70 °C |
| Operation Temperature | -40 °C to 70 °C |
