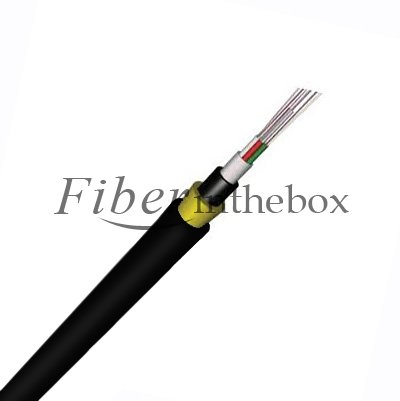

12 Fibers Multimode Stranded Loose Tube Type ADSS Cable with PE Sheath Span 1200M- Fiberinthebox

The price on the website is per meter price. The more, the cheaper.

The 12 Fibers Multimode Stranded Loose Tube Type ADSS Cables from Fiberinthebox are ideal for installation in distribution as well as transmission environments, even when live-line installations are required . As its name indicates, there is no suppo or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a optical fiber network .Fiberinthebox manufactures its own line of attachment hardware as well as supplies formed wire fittings when preferred .

Features

In all cases aramid yarns provide the strength Cable is non-metallic, may be installed on live system, reducing installation cost significantly Also used as temporary repair Precise fiber excess length control ensuring the fibers free from stress when the cable is subject to the maximum design load Precise control of pay-off tension and the stranding lay of aramid yarn enhancing the tensile strength of the cable Employing the material with excellent tracking resistance, offering more safety in high inductive potential environment Special ADSS cable can be designed on customers' request

Installation

loose tube fiber Non-metallic central strength member Jelly filling in the tube and core PE inner sheath Well-distributed stranding aramid yarn and anti-tracking outer sheath Installed on the same poles/towers of the electric power transmission line Also can be lashed to the ground wire or wrapped around it

Specification

Fiber Type	Multimode
Fiber Core Diameter	50/125,62.5/125
Wavelengths	850nm/1300nm
Fiber Count	12
Environment	Special Outdoor Cables
Application	Used in medium and high voltage lines
Cable Type	Loose Tube
Optical unit position	In the eccentric of the cable
Cable Diameter	Φ16.2mm
Weight	205kg/km
Rated Tensile Strength(RTS)	80KN
Modules	20.0KN/mm2
Thermal Expansion Coefficient	0.1×10-6/℃
Storage Temperature	-40°C to 70°C
Installation Temperature	-10°C to 60°C
Operation Temperature	-40°C to 70°C
Span	1200m

Custom Information

Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specified Fiber Count: Custom specified Fiber Type: Single-mode, Multimode Sheath Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified Sheath Material: PE, AT or custom specified Cable Length: Custom specified
