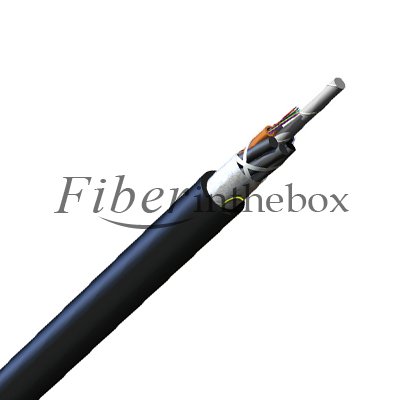

122 Fibers Single-mode Gel-Filled Loose Tube Outdoor Cable

The price on the website is per meter price. The more, the cheaper.

The 122 Fibers Single-mode Gel-Filled Loose Tube Outdoor Cables from Fiberinthebox design provides stable performance over a wide temperature range and is compatible with any telecommunications-grade optical. The loose tubes contain optical fibers color coded as per color coding scheme.The cable protected by a black PE outer jacket, suitable for duct or aerial application. With the PE outer jacket, this cable is rugged, durable and easy to strip while providing superior protection against UV radiation, fungus, abrasion and other environmental factors.

Features

Small diameter & light weight, easy to routeExclusive Color-coded fibers, quick and easy identificationProper design, precise control for fiber excess length Easy handling Longer cable life

Specification

Fiber Type	Single-mode
Fiber Core Diameter	8.2μm
Wavelengths	1310nm/1550nm
Fiber Count	122
Environment	Outdoor Cables
Application	Aerial, Duct
Cable Type	Loose Tube
Tape	Water-swellable
Outer Jacket Color	Black
Max. Tensile Strengths, Sho -Term	2700N
Max. Tensile Strengths, Long-Term	890N
Min. Bend Radius Installation	158mm
Min. Bend Radius Operation	105mm
Weight	80kg/km
Cable Length	1km
Storage Temperature	-40 °C to 70 °C
Installation Temperature	-30 °C to 70 °C
Operation Temperature	-40 °C to 70 °C

Custom Information

Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified.Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specifiedFiber Count: custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: 1km, 2km, 5km, 10km, 30km or Custom specified

Specifications

Fiber Type	Single-mode
Fiber Core Diameter	8.2μm
Wavelengths	1310nm/1550nm
Fiber Count	122
Environment	Outdoor Cables
Application	Aerial, Duct
Cable Type	Loose Tube
Tape	Water-swellable
Outer Jacket Color	Black
Max. Tensile Strengths, Short-Term	2700N
Max. Tensile Strengths, Long-Term	890N
Min. Bend Radius Installation	158mm
Min. Bend Radius Operation	105mm
Weight	80kg/km
Cable Length	1km
Storage Temperature	-40 °C to 70 °C
Installation Temperature	-30 °C to 70 °C
Operation Temperature	-40 °C to 70 °C
