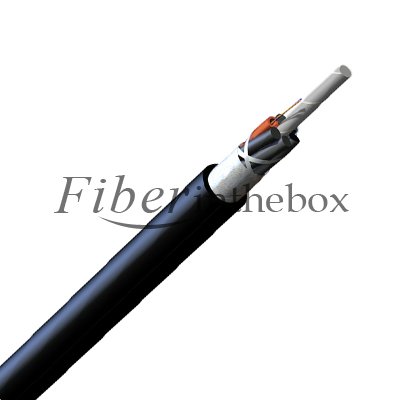

48 Fibers Multimode All-Dielectric Loose Tube Outdoor Cable

The price on the website is per meter price. The more, the cheaper.

The 48 Fibers Multimode All-Dielectric Loose Tube Outdoor Cables from Fiberinthebox are designed for outdoor and limited indoor use for campus backbones in lashed aerial and duct installations. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. This all-dielectric cable is fully waterblocked using craft-friendly, water-swellable materials.With a medium-density polyethylene jacket, the cable is rugged, durable and easy to strip while providing superior protection against UV radiation, fungus, abrasion and other environmental factors. They are designed in accordance with applicable industry technical specifications, standards and references.

Features

Small diameter & light weight extend installation lengthExclusive Color-coded fibers, quick and easy identificationSuitable for aerial lashed, duct, & direct buried installation Easy handling Longer cable life

Specification

Fiber Type	Multimode
Fiber Core Diameter	50µm/62.5µm
Wavelengths	850nm/1310nm
Fiber Count	48
Environment	Outdoor Cables
Application	Aerial, Duct
Cable Type	Loose Tube
Tape	Water-swellable
Outer Jacket Color	Black
Max. Tensile Strengths, Sho -Term	2700N
Max. Tensile Strengths, Long-Term	890N
Min. Bend Radius Installation	158mm
Min. Bend Radius Operation	105mm
Weight	73kg/km
Cable Length	1km
Storage Temperature	-40 °C to 70 °C
Installation Temperature	-30 °C to 70 °C
Operation Temperature	-40 °C to 70 °C

Custom Information

Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified.Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specifiedFiber Count: custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: 1km, 2km, 5km, 10km, 30km or Custom specified

Specifications

Fiber Type	Multimode
Fiber Core Diameter	50µm/62.5µm
Wavelengths	850nm/1310nm
Fiber Count	48
Environment	Outdoor Cables
Application	Aerial, Duct
Cable Type	Loose Tube
Tape	Water-swellable
Outer Jacket Color	Black
Max. Tensile Strengths, Short-Term	2700N
Max. Tensile Strengths, Long-Term	890N
Min. Bend Radius Installation	158mm
Min. Bend Radius Operation	105mm
Weight	73kg/km
Cable Length	1km
Storage Temperature	-40 °C to 70 °C
Installation Temperature	-30 °C to 70 °C
Operation Temperature	-40 °C to 70 °C
