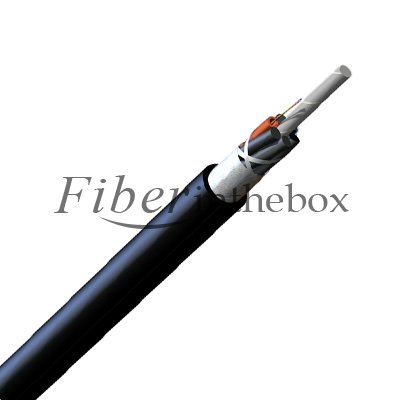

36 Fibers Multimode All-Dielectric Loose Tube Outdoor Cable

SKU#:FITB50961JPJ
Model#: FC-OLT-MMAD-36
MFG PART#: FC-OLT-MMAD-36
Price: US$ 2.23 ( Per Meter )
Sold: 4095
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 2.23 10-19US$ 2.18 20-49US$ 2.14 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
36 Fibers Multimode All-Dielectric Loose Tube Outdoor Cable
The price on the website is per meter price. The more, the cheaper.
The 36 Fibers Multimode All-Dielectric Loose Tube Outdoor Cables from Fiberinthebox are designed for outdoor and limited indoor use for campus backbones in lashed aerial and duct installations. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. This all-dielectric cable is fully waterblocked using craft-friendly, water-swellable materials.With a medium-density polyethylene jacket, the cable is rugged, durable and easy to strip while providing superior protection against UV radiation, fungus, abrasion and other environmental factors. They are designed in accordance with applicable industry technical specifications, standards and references.
Features
Small diameter & light weight extend installation lengthExclusive Color-coded fibers, quick and easy identificationSuitable for aerial lashed, duct, & direct buried installation Easy handling Longer cable life
Specification
Fiber Type Multimode
Fiber Core Diameter 50µm/62.5µm
Wavelengths 850nm/1310nm
Fiber Count 36
Environment Outdoor Cables
Application Aerial, Duct
Cable Type Loose Tube
Tape Water-swellable
Outer Jacket Color Black
Max. Tensile Strengths, Sho -Term 2700N
Max. Tensile Strengths, Long-Term 890N
Min. Bend Radius Installation 158mm
Min. Bend Radius Operation 105mm
Weight 73kg/km
Cable Length 1km
Storage Temperature -40 °C to 70 °C
Installation Temperature -30 °C to 70 °C
Operation Temperature -40 °C to 70 °C
Custom Information
Jacket Color: black, blue, orange, green, brown, slate, white, red, yellow, purple, rose, aqua or custom specified.Fiber Coloring: blue, orange, green, brown, slate, white, red, black, yellow, purple, rose, aqua or custom specifiedFiber Count: custom specified Fiber Type: Single-mode, Multimode Sheath Material: PE, PVC, LSZH or custom specified Cable Length: 1km, 2km, 5km, 10km, 30km or Custom specified
Specifications
Fiber Type Multimode
Fiber Core Diameter 50µm/62.5µm
Wavelengths 850nm/1310nm
Fiber Count 36
Environment Outdoor Cables
Application Aerial, Duct
Cable Type Loose Tube
Tape Water-swellable
Outer Jacket Color Black
Max. Tensile Strengths, Short-Term 2700N
Max. Tensile Strengths, Long-Term 890N
Min. Bend Radius Installation 158mm
Min. Bend Radius Operation 105mm
Weight 73kg/km
Cable Length 1km
Storage Temperature -40 °C to 70 °C
Installation Temperature -30 °C to 70 °C
Operation Temperature -40 °C to 70 °C
