Description

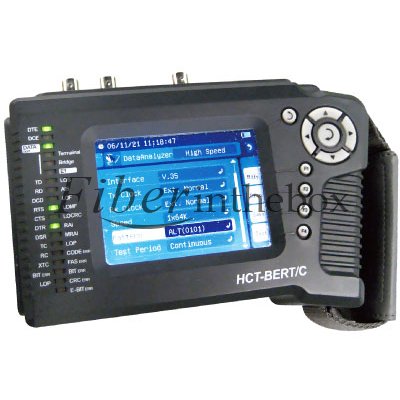

The HCT-BERT/C tester is a compact, color-LCD, graphic-user-interface, single hand E1 Bit error rate tester designed for field use in analysis and maintenance of data communications (V.35, RS530, X.21, RS232) and E1 (2.048Mbps) lines. The HCT-BERT/C performs framed, unframed drop and inse Nx64Kbps, or nx56Kbps data into any time slot. The HCT-BERT/C tester also provides a variety of E1 line statuses, transmission performance testing (BERT) and monitoring. On the E1 line, the HCT-BERT/C may be used as a generator or receiver.
Features
Color LCD display graphic modeUSB po for remote control
Results Repo
Suppo G.821/826, M.2100 BERT analysis
Sa bits setup and monitor
Internal Memory storage of test result; Direct display on LCD screen
Print out via Parallel Printer po
Po able for field use
Upgradeable for advanced features
Rechargeable battery with battery low indicator
Suppo s CRV & BPV performance analysis
Datacom BERT analysis available for V.35, RS-530, X.21 and RS-449
The E1 tester, 2M Error rate tester is designed for 2M bit error rate test, applicable to telecommunication access networks, transmission networks and the sta -up, check and maintenance of optical communications systems. If you are interested in this HCT-BERT/C E1 and Datacom BER Tester, welcome to contact us, we also provide one year warranty for it.
Specifications
1). E1 Receiving Interface
Line code: HDB3/AMI
Pulse feature: ITU G.703
Dithering tolerance: ITU G.823
Input port: BNC (non-balance), RJ45 (balance)
Input mode: Impedance: 75ohm (unbalance), 120ohm (balance)
Bridging mode: Impedance > 1000 ohm
2). E1 Transmission Interface
Line code: HDB3/AMI
Pulse feature: ITU G.703
Pulse amplitude: Nominal 2.37V for BNC 75ohm
Nominal 3.00V for RJ45 120 ohm
Zero amplitude: 0.1 V at max
Dithering tolerance: ITU G.823
Output port model: BNC (non-balance), RJ45 (balance)
Source of clock transmission:
Internal clock: 2.048 MHz 50ppm, 100ppm.
External clock: take clock from external clock interface
Resume clock: take clock from receiving terminal
3). E1 Frame Format
PCM31, PCM31+CRC, PCM30, PCM30+CRC
Non-framing mode, Automatic detection
Error Rate Test (BERT Test)
1). BETR Pattern (Patterns)
511, 2047, 2E15-1, 2E15-1 (reverse), 2E20-1, 2E20-1(reverse), QRSS, 2E23-1, 2E23-1 (reverse), all 1, all 0,
alternate, 1100, 3 IN 24, 1 IN 16, 1 IN 8, 1 IN 4, User programming 1/2/3
2). BERT Display Format
Error counting, Alarm counting, ITU G.821, ITU G.826
M.2100, Histogram
3). BERT Transmission Error Rate
Insert one error compulsorily
Apply an error rate of 10-3-10-7 compulsorily
4). Quality Analysis:
Receiving seconds, Error seconds, Alarm seconds
Free-of-error seconds, Error rate, Valid seconds
Serious error seconds, G.821 error seconds
G.826 error seconds, Invalid seconds
5). Data Port BEST Test
Data rate of the multiple of 64Kbps: N*64Kbps (N=1~36)
Other Function
1). Color Display Screen: Character/graphic mode
2). Test Results Report
100 pieces of test results at max available in storage
Direct display on LCD screen
Print via printer port available
3). Modular Design for Easy Update
Indications: LEDs (DTE, DCE, DATA PORT, TD, RD, DCD, RTS, CTS, DTR, DSR, TC, RC XTC)
Power Input: AC230V adapter to DC 9V 2A
Dimension: 134 x 179 x 68mm (W x D x H)
Weight: 0.8kg
Temperature: 0°C~ 50°C (Operating), -10°C ~ 70°C (Storage)
Humidity: 10~ 90% non-condensing
MTBF: 35,000 hrs
