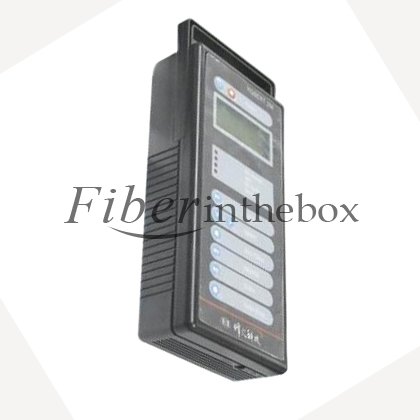

YGBERT 2M PCM Bit Error Rate Tester

YGBERT 2M PCM Bit Error Rate Tester is a pocket-sized and hand-held instrument. It’s light-weighted, fully function and among the best ones in the world. It can be used in inspection systems and supervision of digital micro-wave systems. It’s especially useful in the installation, field operation and maintenance of digital transmission systems.



Pocket-sized and hand-held
Intelligent zed
Adopted ultra large-scale ASIC
Test BE/BER, can be analyzed by using the G.821
Using thick-film integrated circuits
AC/DC
Easy operation
Integrated code-generator and error detector



Test and take performance analysis on the Bit error rate and on-line code error of Single Group Digital communication system. According to ITU-T G.703,O.151, G.821
Digital communication and the development, manufacture, construction and maintenance of the equipment



YGBERT 2M PCM Bit Error Rate Tester
Testing cable
Power supply adapter
Instruction (With guarantee repair card)



The E1 tester, 2M Error rate tester is designed for 2M bit error rate test, applicable to telecommunication access networks, transmission networks and the sta -up, check and maintenance of optical communications systems. If you are interested in this YGBERT 2M PCM Bit Error Rate Tester, welcome to contact us, we also provide one year warranty for it.

Code Generator output: According to ITU-T G.703
Bit Rate: 2048Kbit/s±50ppm
Code-lines:  HDB3
Output impedance: 75Ω (Unbalanced)
Input impedance: 75Ω (Unbalanced)
Code signal:  -1 is random code, 16 bit is user defined code, AIS and 1000 Code.
Error Code inserted: put single bit error or periodically with BER as 10, 10 and 10 into the output signals.
Input signal: HDB3
Allowed input Attenuation: 2048kb/s(0dB-6dB)
Voltage: 12V (Ni-Cd rechargeable battery 1000mA/h: 10pcs) and 15 V (AC/DC transformer 600mA)
Charge: 16 hours
Running: 4 hours
Working environment: Relative temperature 0℃-40℃, Relative humidity 5%-85%
Dimensions: 245(mm) ×105(mm) ×55(mm)
Weight: 0.9kg.
