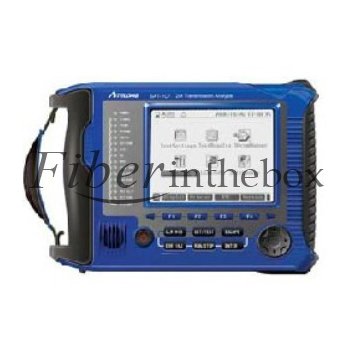

FITB-1AS 2M Transmission Analyzer

LCD large-screen display, 320*240 lattice, backlight, LED indicator
Hand held, auto configuration
Multi-task operation at one time
Store 20 test results and 9 test configurations, with power-off memories
PC operation, store, analysis, print
Programmable timer
Alarm and histogram analysis
Software updating



Service-interrupted error testing
Online error testing
Framed and unframed signals generation and reception
2Mbit/s unframed error performance testing
2Mbit/s framed N×64kbit/s channel error testing
Bit error, coding error, frame error, CRC error and E bit error testing
Signal loss alarm, AIS alarm, framed remote alarm, multi-framed remote alarm, out-of-frame, and pattern loss alarm
Frequency offset testing
Voice channel signal level and frequency testing
Pattern slip testing
Straightforward signaling
Audio frequency testing
Sound monitoring
Signal state display. Voice channel content display. Voice channel busy indication
Alarm and error histogram analysis
Time slot content analysis, drop and inse signal on each time slot
Framed content analysis
G. 821/G. 826/M. 2100 error analysis
Multi error and alarm inse ing
Three input modes (terminating, bridging and monitoring)
Two clock options (internal and picking-up)
FS-1AS Transmission Analyzer 1set
User’s manual 1pc
Software disc 1pc
75Ω Coaxial testing line 1pc
BNC-L9 Testing line or 120Ω testing line CESHIYI 2pc
RS232 serial line 1pc
Power adapter 1pc
Handy-case 1pc



The 2M Error rate tester is designed for 2M bit error rate test, applicable to telecommunication access networks, transmission networks and the sta -up, check and maintenance of optical communications systems. If you are interested in this FS-1AS 2M Transmission Analyzer, welcome to contact us, we also provide one year warranty for it.

(1) Signal input rate: 2048kbit/s, 50ppm (G.703 requirement±100ppm)
(2) Signal code: HDB3, AMI.
(3) Input jitter tolerance: Up to the requirement of Figure 10.1.
Fig.10.1 Input Jitter Tolerance
(4) Input balance response: attenuation complies with the law of square root of frequency, and is within the range of 0 ~ 6dB at 1024 kHz.
(5) Input Impedance
(5.1) Unbalance terminating: 75Ω
Balance terminating: 120Ω
Reflection loss >18dB within 50Hz~3100kHz
(5.2) Unbalance bridging: >750Ω
Balance bridging: >1200Ω
(5.3) Unbalance monitoring: 75Ω, 26dB gain
Balance monitoring: 120Ω, 26dB gain
Reflection loss >18dB within 50Hz~3100kHz
(6) Signal structure
(6.1) Unframed structure
(6.2) Framed structure: PCM30, PCM31, PCM30CRC, PCM31CRC
Framed structure complies with the requirement of G. 704
(7) Testing pattern: 26-1, 29-1, 211-1, 215-1, 220-1, 223-1, and artificial code
(8) Impedance of output interface:
(8.1) Unbalance 75Ω, up to G. 703
(8.2) Balance 120Ω, up to G. 703
(9) External clock input
(9.1) Signal form: HDB3, NRZ
(9.2) Balance terminating resistance: 120Ω
Unbalance terminating resistance: 75Ω
Balance bridging resistance: >1200Ω
Unbalance bridging resistance: >750Ω
(10) Error code insertion: None, single, or ratio 10-1~10-7.

Power supply
(1) Special power adapter
Input: AC220V 50Hz
Output: DC 9V 1.2A
(2) Internal rechargeable battery
4000mAh, 6V nickel-hydrogen rechargeable battery
Working time: 8 hours
Charging: 8 hours at power-off state, and 12 hours at power-on state
Dimension and weight
L×W×H: 200×162×48mm
Weight: 950g
Ambient parameters
Operation temperature: -10~50℃
Storage Temperature: -30~+70℃
Humidity: 5%~90%, non-condensing
