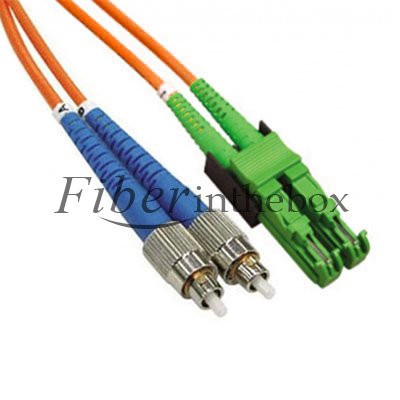

FC-E2000 Plenum Duplex 50/125 Multi-mode Fiber Patch Cable

Plenum Patch Cable

Plenum-rated optical fiber cables are different from other types of cabling by the special types of plastics used in the optical fiber cable jackets. Because plenum cables are routed through air circulation spaces, which contain very few fire barriers, they need to be coated in flame-retardant, low smoke materials. These plastics offer good resistance against possible fire, and in the event that they do begin to burn, they will not emit large quantities of harmful fumes.

FC-E2000 Plenum Duplex 50/125 Multi-mode Fiber Patch Cable

The 50/125 plenum patch cable provides a secure locking mechanism to ensure connection reliability. Customers use these plenum rated fiber patch cords for demanding applications including ATM, Infiniband, Fast Ethernet, Gigabit Ethernet and Fiber Channel. Our 50/125 plenum patch cables are available in custom lengths with just 1-2 days turnaround time from our professional production facilities.

Features

Connector 1: FC
Connector 2: E2000
Ceramic Ferrules
Corning Fiber & Cladding
Immune to electrical interference
100% optically inspected and tested for inse ion loss
RoHS Compliant


Specifications

Inse ion Loss: 0.3db
Return Loss: 25db
Buffer OD: 900 micron
Attenuation: 850 nm: 3.5 dB/ km or at 1300 nm: 1.0 dB/ km
Core/cladding diameter: 50/125μm
Strand Count: Duplex (2-Strand)
Jacketing: Plenum Rated (OFNP)
Jacket Color: Orange

Applications

Fiber Network Deployments
Fast Ethernet
Fibre Channel
Infiniband
ATM
Gigabit Ethernet
Other Data Applications Requiring High Transfer Rates
