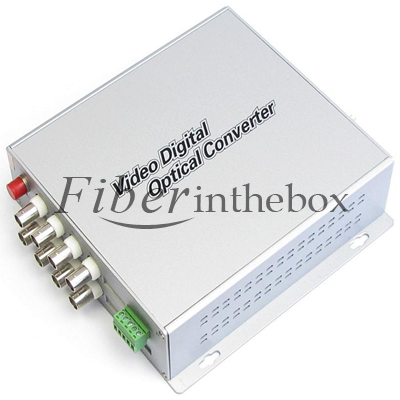

8 Channel Video & 1 Reverse Data to Fiber SM FC 20km Optical Video Multiplexer in Aluminum Alloy Case
Description
Model: FS-8V1D-SM-FC-20KM-Al
Case Body: Aluminum alloy
Transmitter + Receiver
Fiber Mode: Single-Mode
Wavelengths: 1310nm/1550nm
Optical Power Budget: 12dB
Maximum Transmission Distance: 20km
Fiber Optic Video Transmitter & Receiver transmission 8 Channel digital composite video and 1 reverse data, the data suppo RS485, RS232, RS422 protocols
Standalone- (Inse card version also available ,which can be inse ed into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
Standard Single-Mode 20KM- (Multimode also available, which suppo for distances up to 2.0 km)
Case Body: Aluminum alloy
Transmitter + Receiver
Fiber Mode: Single-Mode
Wavelengths: 1310nm/1550nm
Optical Power Budget: 12dB
Maximum Transmission Distance: 20km
Fiber Optic Video Transmitter & Receiver transmission 8 Channel digital composite video and 1 reverse data, the data suppo RS485, RS232, RS422 protocols
Standalone- (Inse card version also available ,which can be inse ed into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
Standard Single-Mode 20KM- (Multimode also available, which suppo for distances up to 2.0 km)
Key Features
No rusty and could be used in special environment, ie: Coal mine site
Suppo Point-to-Point or Daisy-Chain connection
Uncompressed Digital Composite Video over one fiber
Compatible with all PAL, NTSC,SECAM Video Systems
Single-Mode Fiber Suppo for Distances up to 100 km
LED Status Provide Rapid Indication of Operating Parameters
No EMI or RFI and no ground loops
Suppo Coarse Wavelength Division Multiplexing (CWDM)
Stand alone
Produce according to customer's specifications,providing OEM
Suppo Point-to-Point or Daisy-Chain connection
Uncompressed Digital Composite Video over one fiber
Compatible with all PAL, NTSC,SECAM Video Systems
Single-Mode Fiber Suppo for Distances up to 100 km
LED Status Provide Rapid Indication of Operating Parameters
No EMI or RFI and no ground loops
Suppo Coarse Wavelength Division Multiplexing (CWDM)
Stand alone
Produce according to customer's specifications,providing OEM
Specifications
| Video | Connectors | ||
| Number of Channels | 8 channel Video | Video | 75Ω BNC (Gold Center Pin) |
| Input/output impedance | BNC 75Ω | Data | 3 Pin Terminal Block |
| Input/output Compatibility | PAL,NTSC,SECAM | Optical | FC (Standard) |
| Input/output voltage | 1.0 Volt p-p | Standalone power | Screw terminal block |
| Bandwidth | 6.5MHZ | Rack Power | AC line card |
| Bit Resolution | 8-Bit Digital Transmission | Electrical & Mechanical | |
| Differential Gain | < 1.5% | Input Power Requirements | DC 5V@2A |
| Differential Phase | < 1.5° | Power Adapter | AC 100V~240V |
| Tilt | < 5% | Power Consumption | < 3W |
| Signal-to-Noise Ratio(SNR) | > 67 dB | Shipping weight | 2.4kg(include TX & RX) |
| Data | |||
| Data Formats | RS485(2-wire or 4-wire), RS232/422,Contact Closure | ||
| Data Rate | DC to 115.2Kbps | ||
| Bit Error Rate | 10E-9 | ||
| Environmental | |||
| Operating Temperature | -45°C~+75 °C | Storage Temperature | -45°C~+85 °C |
| Relative Humidity | 0%~95% (non-condensing) | MTBF | >100,000 hours |
