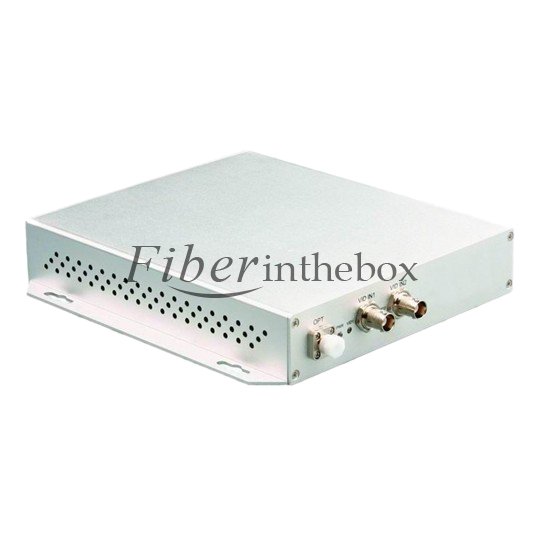

2 Channel Video to Fiber Optical Video Multiplexer Transmitter and Receiver SM FC 20km in Aluminum Alloy Case
Description
Model: FS-2V-SM-FC-20KM-Al
Case Body: Aluminum alloy
Transmitter + Receiver
Fiber Mode: Single-Mode
Wavelengths: 1310nm/1550nm
Optical Power Budget: 12dB
Maximum Transmission Distance: 20km
Fiber Optic Video Transmitter & Receiver transmission 2 Channel digital composite video
Standalone- (Inse card version also available ,which can be inse ed into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
Standard Single-Mode 20KM- (Multimode also available, which suppo for distances up to 2.0 km)
Case Body: Aluminum alloy
Transmitter + Receiver
Fiber Mode: Single-Mode
Wavelengths: 1310nm/1550nm
Optical Power Budget: 12dB
Maximum Transmission Distance: 20km
Fiber Optic Video Transmitter & Receiver transmission 2 Channel digital composite video
Standalone- (Inse card version also available ,which can be inse ed into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
Standard Single-Mode 20KM- (Multimode also available, which suppo for distances up to 2.0 km)
Key Features
Uncompressed Digital Composite Video over one fiber
Compatible with all PAL, NTSC,SECAM Video Systems
Single-Mode Fiber Suppo for Distances up to 100 km
LED Status Provide Rapid Indication of Operating Parameters
No EMI or RFI and no ground loops
Suppo Coarse Wavelength Division Multiplexing (CWDM)
Stand alone
Produce according to customer's specifications,providing OEM
Specifications
| Video | Connectors | ||
| Number of Channels | 2 channel Video | Video | 75Ω BNC (Gold Center Pin) |
| Input/output impedance | BNC 75Ω | Optical | FC (Standard) |
| Input/output Compatibility | PAL,NTSC,SECAM | Standalone power | Screw terminal block |
| Input/output voltage | 1.0 Volt p-p | Rack Power | AC line card |
| Bandwidth | 6.5MHZ | ||
| Bit Resolution | 8-Bit Digital Transmission | Electrical & Mechanical | |
| Differential Gain | < 1.5% | Input Power Requirements | DC 5V@2A |
| Differential Phase | < 1.5° | Power Adapter | AC 100V~240V |
| Tilt | < 5% | Power Consumption | < 3W |
| Signal-to-Noise Ratio(SNR) | > 67 dB | Shipping weight | 2.4kg(include TX & RX) |
| Environmental | |||
| Operating Temperature | -45 °C~+75 °C | Storage Temperature | -45 °C~+85 °C |
| Relative Humidity | 0%~95% (non-condensing) | MTBF | >100,000 hours |
