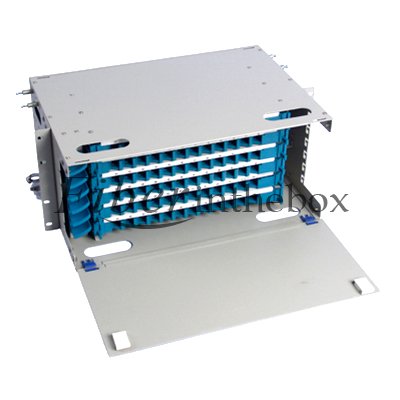

72 Fibers ODF 19'' Rack Mount Distribution Box FITB-ODF-B-72

SKU#:FITB97494NSZ
Model#: FITB-ODF-B-72
Price: US$ 64.13
Sold: 2420
Availability: In Stock
Qty:
Direct Factory Price Contact Us: Sales@fiberinthebox.com
QtyPrice QtyPrice QtyPrice QtyPrice QtyPrice
1-9US$ 64.13 10-19US$ 62.84 20-49US$ 61.56 50-99 Sign in to view 100+ Sign in to view
fiberinthebox-bbb-a-plus-certification fiberinthebox-product-certification
Description
Fiberinthebox 19'' ODF rack mount can be installed on standard 19'' racks and currently being widely used in optical fiber distribution frames. Customer's special requirements are welcomed.
Functions
Optical cable fixation and protection Optical cable termination Patching Protection of optical fiber and pigtail
Key Features
For standard 19'' racks use (other rack width options available on request) Fully stable patch panel, no risk of movement Protected patch panel offers secure environment for adapters, patch cords and pigtails Top quality steel with cover by electrostatic painted ensures the strong body and pleasing appearance Easy for installation of inlay, convenient to expand capacity, obliquity of adapter is 30° Height: depends on capacity, one Integrated Splice & Distribution unit which has the capacity of 12 core within 1U height ROHS compliant
Kind Reminder
The price is for 72 cores ODF does not come with adapters and pigtails, if you need adapters or pigtails, please contact us at sales@fiberinthebox.com . Thank you!
Specifications
Dimension (mm): 480*300*4U Capacity: 72 fibers Fusion Tray: 12C X 6 Relative humidity: ≤ 85% (30°) Air pressure: 70KPa~106Kpa Working temperature: -10℃~+60℃ Storage temperature: -25℃~+85℃
Picture Details
