Description

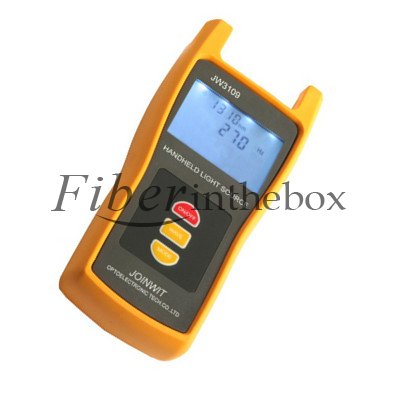

JW3109 optical light source can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the JW3208 optical power meter, it is a perfect solution for the optical fiber network characterization.
Features
Provides 1~4 output wavelengths which can be optional according to customer's needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display suppo s night operation
Compact size and decent appearance
Large LCD, easy operation
Alternative 10 minutes Auto-off function conserving battery life
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display suppo s night operation
Compact size and decent appearance
Large LCD, easy operation
Alternative 10 minutes Auto-off function conserving battery life
Application
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Recommendation
JW3109 Handheld Light Source is designed for optimal use with JW3208 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable.
Standard Packages
| Model | Includes |
| All JW3109 Models | JW3109 Optical Light Source, Protective Rubber Boot, 3pcs 1.5V batteries,User Manual, Cotton swabs and Soft carrying case. |
Kind Note
This price is only for JW3109-7 optical fiber light source with three output wavelengths (850/1310/1550nm).
Fiberinthebox is your reliable supplier of optical fiberal light source, and all of it have been 100% tested before delivery. And we even provide one year warranty for that. If you have any problems or special requirement or want to buy this handheld JW3109-7 optical fiberal light source at a large quantity, please feel free to contact us. We will try our best to provide you the best service.
Specifications
| Type | JW3109 | |||
| perating wavelength(nm) | 650 | 1310/1550 | 850/1300 | 850/1300/1310/1550 |
| Emitter Type | FP-LD,LED or others please specify | |||
| Spectral Width(nm) | ≤10 | |||
| Typical Output Power (dBm) | 0 | -7dBm for LD, -20dBm for LED | ||
| Output Stability | ±0.05dB/15mins; ±0.1dB/ 8hours | |||
| Modulation Frequencies | CW,2Hz | CW,270Hz,1KHz,2KHz | ||
| Optical Connector | FC/ universal adaptor | FC/PC | ||
| Power Supply | Alkaline Battery(3 AA 1.5V batteries) | |||
| Storage Temperature(℃) | -10~+60 | |||
| Operating Temperature(℃) | -25~+70 | |||
| Battery Operating time(h) | 45 | |||
| Dimension(mm) | 175x82x33 | |||
| Weight(g) | 295 | |||
