Description
The Fiber Optic Terminal Box is a kind of optical fiber management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.
The FS/JJ-FCZ/XA-SC12-24C we provide is a kind of high quality, micro sized optical fiberal termination box made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC adapter, the box can be installed on the indoor wall and terrace.
The FS/JJ-FCZ/XA-SC12-24C we provide is a kind of high quality, micro sized optical fiberal termination box made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC adapter, the box can be installed on the indoor wall and terrace.
Features and Advantages
Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation The box has a pothook, which is convenient to install and dismantle The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray The box is of unique structure, reasonable layout, and has adequate room for operation Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly The indoor type is of excellent seal performance, which could prevent water from entering effectively Be installed with SC adapter Up to 24 cores splice capacityDustproof design,suitable for rack dustproof installaltionEasy to operate for revolving structure
Kind Reminder
This price is for FS/JJ-FCZ/XA-SC12-24C optical fiber terminal box, not including the adapters and pigtails. If you need them be installed, please contact us for details at sales@fiberinthebox.com , we can make it for you with reasonable price. Thank you!
Applications
Order Information
| Type | Dimension(mm) | Max capacity cores | Remark |
| FS/JJ-FCZ/2SC24 | 480*300*44.5 | 48 | The body is made of cold rolled steel sheet,available for FC,ST,SC,LC adaptor |
| FS/JJ-FCZ/XA-SC12 | 480*315*44.5 | 24 |
Packing Information
| Type | Net size | Net weight | Outer ca on size | Outer ca on wight | Pcs per ca on |
| FS/JJ-FCZ/2SC24 | 465*330*75mm | 4.1kg | 485*400*350mm | 22.0 kg | 5 |
| FS/JJ-FCZ/XA-SC12 | 465*330*75mm | 4.1kg | 485*400*350mm | 25.0kg | 5 |

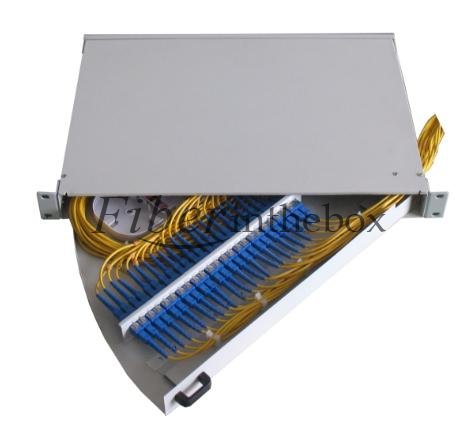

Detailed Picture
.JPG)
.JPG)
.JPG)
