Introduction

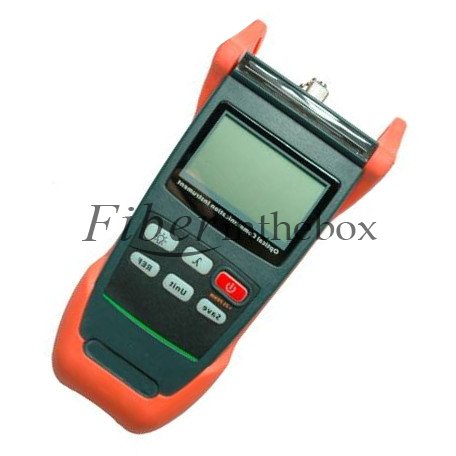

EPM30 handheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
Features
Calibrated Wavelengths: 850/1300/1310/1490/1550/1625nm
EPM30T: +6 ~ -70dBm
EPM30C: +26 ~ -50dBm
USB po & data storage
EPM30T: +6 ~ -70dBm
EPM30C: +26 ~ -50dBm
USB po & data storage
Specifications
| EPM30T | EPM30C | |
| Measuring range | +6~-70dBm | +26~-50dBm |
| Calibrated wavelengths | 850/1300/1310/1490/1550/1625nm | |
| Display resolving power | 0.01dB | |
| Connecting adaptor | FC/PC & 2.5mm Universal | |
| Accuracy | ± 0.2dB | |
| Reference value set | Yes | |
| Auto power off | About 10 minutes(can be cancelled) | |
| Data storage | Yes | |
| Power supply | AA * 3 batteries or AC/DC power supply adapter | |
| Size | 190mm x 90mm x 40mm | |
| Weight | About 400g | |
Fiberinthebox is specializing in supplying optical fiber components and network equipment, all the products are qualified because they have been 100% tested before delivery, especially the optical power meter. And a special discount will be provided if you need this brand new EPM30C Fiber Optic Power Meter at a large quantity
