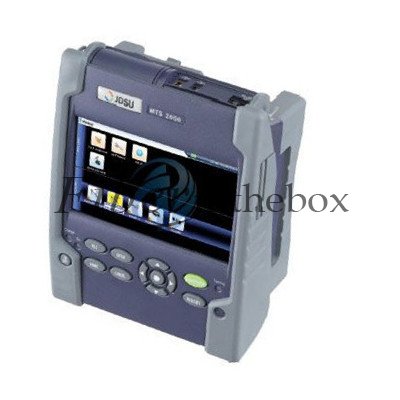

JDSU MTS-2000 Handheld OTDR with E4126LM Module
Description:
The MTS-2000 is the smallest and the most mobile and compact test platform designed to test all phases of the fiberoptic network lifecycle, from the installation to the maintenance of Access and FTTx networks. Working with the same optical module than the T-BERD/MTS-4000, the MTS-2000 is an additional alternative for field technicians.
Highlights:
1. Mono-modular platform
2. 5" touch screen display
3. Wireless access and testing: Wifi 802.11b/g and Bluetooth
4. Modules already available: OTDR, PON (SPM)
5. Optional VFL and power meter/source (multi-function po )
6. Compatible with P-5000i digital connector inspection probe via USB 2.0
7. Web browser, calculator, 2 x USB 2.0 po s, Jack/Bluetooth audio output, PDF reader, etc.
Key Features:
1. Large 5-inch touch screen display
2. Test applications include OTDR, automatic IL/ORL, CWDM analyzer, selective PON power meter and connector inspection with IEC pass/fail analysis
3. Built-in optical power meter, VFL and optical talkset options
4. New generation lithium polymer (LiPo) battery for up to 8 hours operation
5. Flexible connectivity with ethernet, USB, bluetooth and wifi capabilities
6. Special hands-free bag as standard
7. Cross-compatibility with T-BERD 4000 multiple services test platform
Applicatons:
1. LAN/WAN/Metro/Access/PON OTDR applications. Ensure fast and consistent fiber deployments across your network with the Sma OTDR test mode
2. FiberComplete application for automated Inse ion Loss and ORL testing with fault finding
3. CWDM optical spectrum analyzer application
4. PON/FTTH selective power meter application
5. Digital analysis microscope to inspect connectors end faces and perform IEC Pass/Fail analysis
6. Other test applications: optical power meter, visual fault locator and optical talkset
Benefits:
1. Hands-free testing. Hands-free case optimizing productivity whether the task is “up poles or down holes” and ensuring all the essential fiber test tools are close at hand comes standard and makes daily work for technicians easier.
2. Built for simplicity. Simple interface and one-touch button operation ensures straightforward use of the instrument. Results are displayed on a large high resolution color touchscreen.
3. Widest range of applications. The modular form factor enables to outfit the test set with the exact capabilities needed in the field.
4. Combining such a large array of applications into one handheld test set maximizes return on investment and drives common test methods and procedures
Design Efficiency
| General (typical at 25°C) | |
| Display | 5-inch TFT color touch screen (12.5cm) |
| Resolution 800*480 WVGA | |
| Interface | Two USB 2.0 port |
| One mini-USB 2.0 port | |
| RT-45 LAN 10/100/1000 Mbps | |
| Built-in Bluetooth (optional) | |
| Built-in WIFI 802.11b/g/n (optional) | |
| Internal memory | 1 GB (128MB for storage) |
| Battery | Rechargeable lithium-polymer battery |
| 8-hour operation as per Telcordia GR-196-CORE | |
| Power supply | AC/DC adapter, input 100-250 VAC, |
| 50-60 Hz; 2.5A max, output 12VDC, 25W | |
| Electrical safety: EN60950-compliant | |
| Size with module (H*W*D) | 175*138*80mm (6.9*5.4*3.2 in) |
| Weight | with battery: .0864 kg (1.89lbs) |
| with battery and LM OTDR: 1.21 kg (2.67 lbs) | |
| Temperature | Operating: -20°C~+50°C (-4°F~+122°F) |
| Storage: -20°C~+60°C (-4°F~+140°F) | |
| Relative humidity | 0% ~ 95% non-condensing |
| Built-in Power Meter (*note 1) | |
| Calibrated wavelengths | 850/ 1310/ 1490/ 1550/ 1625/ 1650 nm |
| Wavelength range | 800 to 1650 nm in 1 nm steps |
| Accuracy (*note 2) | ±0.2 dB |
| Measurement range (*note 3) | +5 to -50 dB |
| Maximum resolution | 0.01 dB/ 0.01 nW |
| Connector type | Universal push pull (UPP) |
| Built-in Visual Fault Locator (VFL) | |
| Wavelength | 650 nm |
| Emission mode | CW, 1 Hz |
| Laser class | Class 2 per standards EN60825-1and FDA21 CFR Part 1040.10 |
| Built-In Talk Set | |
| Dynamic range | 32 dB (typical) |
| Connector types | SC, FC, AND upp (three adaters include) |
| note: | |
| 1. At 25°C, after 20 minutes stabilization time and after zero setting | |
| 2. At calibrated wavelength (except 1650 nm) | |
| 3. -45 dBm from 800 to 1250 nm | |
