Description:

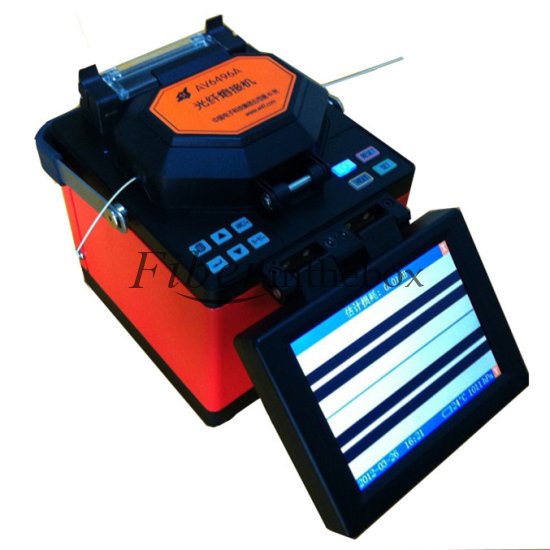

The AV6496A fiber splicer adopts a brand new design with a trimmed size and weight. With the splicer, it is easy to load and clamp fibers;The real-time discharging calibrating system was new designed and the arc is steady;The efficiency of the ameliorated heating system was increased;The embedded high power LI-ion battery provided safeguard for long-time outdoors construction;The all-round protection and parameter compensation design lead to wide applications and assure low loss splicing even in adverse conditions. This product can splice single core fiber with low loss in fiber communication engineering.
Main Features:
New fiber clamp set is easy to operate
Display the X/Y fiber image at the same time
Very high work efficiency
Long lifetime of the electrodes, can discharge 3500 times at least
Embeded high power Li-ion battery,can fuse 160 times
Windbreak and dustproof design,can work in strong windy(15m/s)
5.6" high definition LCD displayer,viewing angle adjustabl
Typical Application:
AV6496A Fiber splicer mainly applied to fiber cable construction, fiber line maintenance, rush repair fiber cable and fiber device produce test.
|
Key
|
Description
|
QTY
|
|
1
|
AV6496A optical fiber fusion splicer
|
1
|
|
2
|
AC power adapter
|
1
|
|
3
|
AC current cable
|
1
|
|
4
|
Standby electrode
|
1
|
|
5
|
Blower brush
|
1
|
|
6
|
Bottle with siphon
|
1
|
|
7
|
Fiber bracket
|
1
|
|
8
|
User ´ s manual
|
1
|
|
9
|
Luxury tote kit
|
1
|
Specifications
Technical Parameter:| Applicable fiber | Fibers complying with the ITU-T G.651∼G.655 standards |
| Average splicing loss | 0.02dB SMF(typical); 0.01dB MMF(typical); 0.04dB DSF (same fiber) |
| Operation mode | Automatic, half-Automatic, manual |
| Environment adaptation |
Temperature range: -10°C∼50°C; Humidity: 95%RH(40°CŒno condensing); Altitude: 0∼5000m |
| Power supply |
Embede 11.1V Li-ion battery package, AC adopter(input AC100∼240V; output DC13.5V) |
| Dimensions | L*W*H = 180*150*140(mm) |
| Weight | 3.6kg |
