Introduction

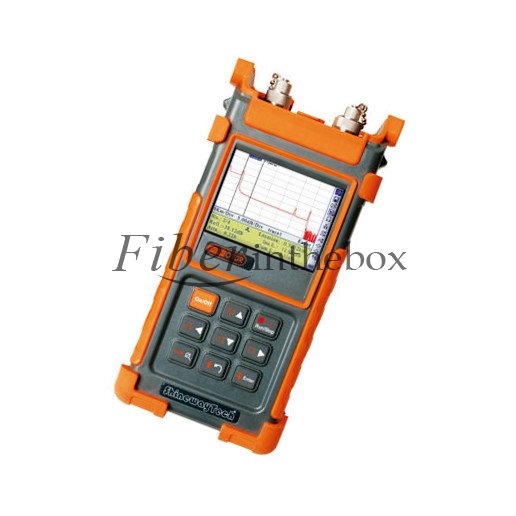

Palm OTDR series handheld OTDR suppo s averaging and real-time tests featuring compact design, excellent stability, user-friendliness and cost-effectiveness. The hotkeys enable convenient events review and analysis. A variety of models are available for singlemode/multimode fibers and LAN/WAN/FTTx applications. With TraceManager software, you can save and transfer test data from OTDR to PC for fu her analysis, repo ing and printing.
Features
· Comprehensive fiber applications, ideal for LAN/WAN/FTTx ce ification & trouble-shooting:
SM: 1310/1490/1550, 1625/1650nm (Live), up to 45dB
MM: 850/1300nm, 21/24dB
· Fault locating, fiber length/loss measurement, connector/splice/splitter/macrobend/fiber-end detection
· Built-in PON Power Meter for Triple-play live measurement
· Optional Laser Source, SM/MM Power Meter and VFL
· FTTx in-service testing/Testing through ≥1×64 splitter: (1625/1650nm with filter)
· Splitter & fiber-end identifiable
· Auto/Manual(2-point/5-point)/Averaging/Real-time test
· Pass/Fail assessment and ORL test function
· Quick sta : <5 seconds
· Perfect user interface, handheld & lightweight (1kg)
· Hotkeys: Easiest operation in the world, push-and-test
· 1000 test records storage
· Bellcore file format (.sor)
· PC software for batch data processing
· RS232/USB data interface
· USB/RS-232 data interface, driver-free
· Multilanguage: EN/DE/IT/FR/ES/PT/RU/KR/CN etc.
· 8 hours continuous operation/20 hours standby
· Dust-shock proof (2m drop test)
· CE, FCC, FDA ce ificates
SM: 1310/1490/1550, 1625/1650nm (Live), up to 45dB
MM: 850/1300nm, 21/24dB
· Fault locating, fiber length/loss measurement, connector/splice/splitter/macrobend/fiber-end detection
· Built-in PON Power Meter for Triple-play live measurement
· Optional Laser Source, SM/MM Power Meter and VFL
· FTTx in-service testing/Testing through ≥1×64 splitter: (1625/1650nm with filter)
· Splitter & fiber-end identifiable
· Auto/Manual(2-point/5-point)/Averaging/Real-time test
· Pass/Fail assessment and ORL test function
· Quick sta : <5 seconds
· Perfect user interface, handheld & lightweight (1kg)
· Hotkeys: Easiest operation in the world, push-and-test
· 1000 test records storage
· Bellcore file format (.sor)
· PC software for batch data processing
· RS232/USB data interface
· USB/RS-232 data interface, driver-free
· Multilanguage: EN/DE/IT/FR/ES/PT/RU/KR/CN etc.
· 8 hours continuous operation/20 hours standby
· Dust-shock proof (2m drop test)
· CE, FCC, FDA ce ificates
Online Optical Signal Detection
When OTDR tests with 1310/1490/1550nm wavelength, the in-service signals transmitting in the tested fiber may not only affect OTDR measurements but also damage the equipments connected to the network (SDH/WDM/PON) and OTDR receiver. palmOTDR series avoids the problem by sta ing in-service communication check before testing with message warning and auto termination functions to effectively protect test instruments and communications equipments.
OTDR TraceManager Software
TraceManager software can display, analyze and edit trace files, generate and print comprehensive test and analysis repo s in various forms.
· Trace viewing, events analysis
· Multi traces comparison
· Batch editing and flexible printing
· Bidirectional testing
· Trace viewing, events analysis
· Multi traces comparison
· Batch editing and flexible printing
· Bidirectional testing
Ordering Information
Standard Package Includes: Instrument, FC/PC connector, NiMH battery, TraceManager software CD, Data cable (USB/RS-232), AC adaptor, Soft carrying case, Warranty card, CE ce ificate, Ce ificate of calibration, Quick reference guide.
Fiberinthebox is specializing in supplying optical fiber components and network equipment, and we are trying to complete this system. For the ShinewayTech M20A/N Palm OTDR 850/1300nm OTDR, we provide one year warranty for it. If you have any problems or special requirement of this OTDR, please feel free to contact us. We will try our best to provide you the best service.
Specifications
| Model (1) | Wavelength (±20nm) | Dynamic Range(2) | Event DeadZone(m) | Attenuation DeadZone(m) |
| palmOTDR- M20A/N | 850/1300 | 18/22dB | 7(6) | 20(6) |
| palmOTDR- S20A/N | 1310/1550 | 24/24dB | 10(5) | 25(5) |
| palmOTDR- S20B/N | 1310/1550 | 32/32dB | 2.5 | 14 |
| palmOTDR- S20C/N | 1310/1550 | 38/37dB | 2.5 | 14 |
| palmOTDR- S20C/N+ | 1310/1550 | 45/43dB | 2.5 | 14 |
| palmOTDR- S16C/N | 1625 | 37dB | 1.5 | 10 |
| palmOTDR- S20C/P | 1310/1490/1550 | 38/37/37dB | 2.5 | 14 |
| palmOTDR- S20C/X | 1310/1550/1625 | 38/37/37dB | 1.5 | 10 |
| Selectable Range (Km)(3) | 0.1,0.3,0.5,1.3,2.5,5,10@850nm; 0.1,0.3,0.5,1.3,2.5,5,10,20,40,80@1300nm; 0.3,1.3,2.5,5,10,20,40,80,120,160,240@others | |||
| Pulse Width(4) | 12ns,30ns,100ns,275ns,1µs@850nm; 12ns,30ns,100ns,275ns,1µs,2.5µs@1300nm 5ns,10ns,12ns,30ns,100ns,275ns,300ns,1µs,2.5µs,10µs,20µs@others | |||
| Averaging Time | 15s,30s,1min,2min,3min | |||
| Distance Measure Accuracy | ±(1 m + 5×10-5×distance + sampling space) | |||
| Attenuation Detect Accuracy | ±0.05 dB/ dB | |||
| Reflection Detect Accuracy | ±4 dB | |||
| Data Storage | 1000 records | |||
| Connectivity | USB/RS-232 | |||
| Connector | FC/PC (Interchangeable SC, ST) | |||
| Power Supply | NiMH Battery / AC Adapter | |||
| Battery Life | 8 hours continuous operation; 20 hours standby (on one charge) | |||
| Operating Temperature | 0℃ ~ 50℃ | |||
| Storage Temperature | -20℃ ~ 70℃ | |||
| Relative Humidity | 0~95% (non-condensing) | |||
| Weight | 1kg (2.2 lbs) | |||
| Dimensions (H×W×T) | 220×110×70mm (8.7×4.3×2.7 inch) | |||
| Visible Fault Locator (Only available with Type B/N and C/N) | ||||
| Output Power (dBm) | ≥-3 | |||
| Max Measurement Range | 5 Km | |||
Notes:
(1) describe the instrument's warranted performance, measured with typical PC-type connectors. Uncertainties due to the refractive index of fiber are not considered;
(2) The dynamic range is measured at maximum pulse width within averaging time of 3 minutes;
(3) Among the selectable ranges 160km and 240km are only for type B/N, C/N; 120Km is only for type A/N;
(4) Among the pulse widths 5ns,10ns,300ns,10us and 20us are only available for type B/N,C/N; 12ns and 275ns are only for type A/N;
(5) Conditions for dead zone measurement: For type A/N, reflection events are within a range of 2.1Km, reflection intensity is less than -35dB, measured at pulse width of 30ns; For type B/N, C/N, reflection events are within a range of 0.6Km, reflection intensity is less than -45dB, measured at pulse width of 10ns (event dead zone) and 30ns (attenuation dead zone);
(6) Conditions for dead zone measurement: When reflection events are within a range of 1km, reflection intensity is less than -32dB; and the dead zone is measured at pulse width of 12ns.
