| Alignment |
Fixed V-Groove (Clad to Clad) |
|
Cladding Diameter |
125µm |
|
Coating Diameter |
250 ~ 900µm |
|
Average Splice Loss |
0.03dB (SM), 0.02dB (MM), 0.06dB (NZDS, DS) |
|
Splicing Time (Typical) |
7 seconds |
|
Heating Time |
15 seconds (0.9mm Fiber), 70 seconds (Indoor, 3.0mm Cable) |
|
Sleeve Length |
45mm (For Fiber), 28mm or 32mm (For Connector) |
|
Tension Test |
1.96N |
|
Splice Memory |
2000 |
|
Compatible Cable |
0.25mm, 0.9mm, 2.0mm, 3.0mm, Indoor Cable |
|
Dimension |
135(W) x 200(L) x 82(H) mm |
|
Weight |
1.5Kg (Body 1.1kg, Battery 120g x 2) |
|
Power |
DC Li-Polymer Battery, 100~240V AC Adapter |
|
Battery Capacity |
1400mAh x 2 |
|
No. of Splicing/Heating with battery |
Typical 120cycles (0.9mm Fiber) |
|
Operating Temp |
-10°C ~ 50°C |
|
Storage Temp |
-40°C ~ 80°C |
- Shop by Category
Optical Fiber Transceivers
- QSFP+ & CFP Transceivers
- 100G CFP/CFP2/CFP4/QSFP28
- 40G QSFP+
- QSFP+ Loopback
- 40G CFP
- 400G CFP8/OSFP/CDFP
- CFP Loopback
- 10G SFP+ Transceivers
- 10G SFP+
- 8G SFP+
- CWDM SFP+
- DWDM SFP+
- BIDI SFP+
- 16G SFP+
- Dual-Rate 1/10G SFP+
- SDH/SONET SFP+
- Compatible SFP+
- SFP Transceivers
- Compatible SFP
- 100M & 1G SFP
- SONET/SDH SFP
- 4G SFP
- CWDM SFP
- DWDM SFP
- Copper & SGMII SFP
- BIDI SFP
Direct Attach Cables
Fiber Optic Patch Cables
- Common Fiber Patch Cables
- 10G OM4 Patch Cables
- 10G OM3 Patch Cables
- Singlemode Fiber Cables
- OM1 Multimode Fiber Cables
- OM2 Multimode Fiber Cables
- 100/140 Patch Cable
- Armored Fiber Patch Cables
- 10G Armored Cables
- Singlemode Armored Cables
- Multimode Armored Cables
- Multi-core Armored Cables
- Military Grade Fiber Cable
- Related Fiber Cables
- Fiber Optic Pigtails
- Fiber Loopback Cables
- FTTH Patch Cables
- Mode Conditioning Patch Cables
Special Offers
MTP MPO Cables
Passive Components
- Optical Splitters
- Bare Fiber Splitters
- Blockless Fiber Splitters
- Fanout Splitters
- FBT Couplers Splitters
- ABS & LGX Splitters
- Rack Chassis Splitters
- Optical Attenuators
- LC & SC Attenuators
- FC & ST Attenuators
- E2000 Attenuators
- Variable Attenuators
- Variable Attenuators Instrument
Special Offers
Optical Fiber Converters
- Fiber Media Converters
- Ethernet Media Converters
- Gigabit Fiber Media Converters
- Single Mode To Multimode Converters
- 10G Media Converters
- Media Converter Chassis
- Optical Multiplexers
- Video Multiplexers
- Video & Data Multiplexers
- Video & Audio Multiplexers
- Video & Data & Audio Multiplexers
- PDH Multiplexers
- Video Multiplexer Chassis
Special Offers
Fiber Bulk Cables
Special Offers
Cable Management
Special Offers
Optical Fiber Testers
- Optical Fiber Testers
- Visual Fault Locators
- Optical Power Meter
- Fiber Optic Light Source
- OTDR
- Optical Multimeter
- ADSL Testers
- Cable Fault Locators
- CCTV Security Testers
- Fiber Identifiers & Talk Set
- Fluke Test Equipment
- Optical Fiber Tools
- Network Cable Testers
- Telephone Line Testers
- Fiber Cable Strippers
- Fiber Cable Slitters
- Cable Crimping Tools
- Fiber Optic Cutters
- Punch Down Tools
- Fiber Optic Tool Kits
- Other Cost-effective Tools
Copper Cabling
- Cat6 & Cat6A Products
- Cat6 & Cat6A Network Cables
- Cat6 & Cat6A Bulk Cables
- Cat6 & Cat6A Patch Panels
- Category 6 Modular Jacks & Plugs
- Category 5e Products
- Cat5e Network Cables
- Cat5e Bulk Cables
- Cat5e Patch Panels
- Category 5e Modular Jacks & Plugs
Special Offers
- Home
- Shop by Brand
- Customized Production
- Request a Quote
- Contact Us

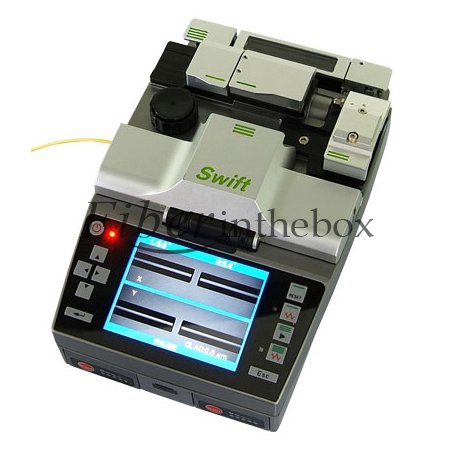

New Ilsintech Swift-F1 All in One Fusion Splicer
SKU#:FITB55131AKD
Model#: Swift-F1
Price:
US$ 5,291.50
Sold: 4391
Availability: In Stock
Description
Swift F1 is the highly sophisticated and integrated clad alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically: heating, stripping, cleaning, cleaving, splicing and sleeving.
The Swift F1 has been designed for fusion splicing and splice-on connector (Swift Connector) of FTTH network applications.
The structural and complementary features of Swift F1 have been applied to the design of Swift Connectors to resolve the problems of mechanical connectors in past: low quality, weak durability and high maintenance cost. Swift F1 has turned around the way that the connector users, who were used to thinking previously, as from the installation and maintenance costs of splice-on connector, had been more expensive than a mechanical connector to more cost effective than mechanical connector purchasing cost of splice-on connector.
Swift F1 is a versatile fusion splicer which can perform all kinds of FTTH fusion splicing for the ordinary 0.25mm, 0.9mm, 2mm~3mm cable, indoor cable and others splicing connectors.
All in all, this Swift-F1 is a revolution of a splicer.
Features:
a. Single All-in-one Device (strip, clean, cleave, splice and heat sleeve)
b. Operation time is around 60 seconds (incl. connector assembly, 0.9mm fiber)
c. No crack happens when using the built in heat stripper with more than 3.5kgf.
d. Very user friendly, from beginners to pros.
Package Include
Includes Splicer, AC Adapter, Battery Charger, Battery Pack, Fiber Holder, Spare Electrode, Cooling Tray, Carrying Case and User Guide CD.
Fiber Optic Fusion splicer is a must in the process of properly joining two bare optical fibers together. For this kind of fine workmanship product, we Fiberinthebox.com provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of the Ilsintech Swift-F1 All in One Fusion Splicer, please feel free to contact us. We will try our best to provide you the best service.
Specifications
