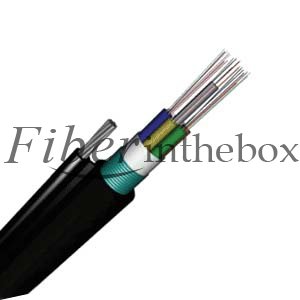

Figurge 8 Self-suppo ing Cable GYXTC8S
GYXTC8S features the centrally situated loose tube with good excess length and minimize the influence of lateral crush. The water resistant tape provides water tight prope y. Corrugated steel tape armor and the PE outer sheath of GYXTC8S optical fiber cable provide crush resistance and gun shot resistance. The cross section shows figure 8. Stranded wires as self suppo ing member providing excellent strain performance and convenient installation for this GYXTC8S fiber cable.
Features
Being used full section water retardant structure it possesses good water retardant and damp proof prope y.
Special factice is filled into inside of loosing jacket and taken key protection to optical fiber.
Ve ical wrapped steel strip strengthens resisting lateral pressure ability.
Compact structure and lightness, flexible and good bend-resistant performance.
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental prope ies.
8 font self unde aken type structure possesses high tensile strength and is convenient for aerial installation cost is cheap.
The service life of the product will be more 30 years.
Complies with Standard YD/T 1155-2001 as well as IEC60794-1.
Cable Structure
.jpg)
Structure of the cable package
Our Factory
-
Fiber Coating -
Gel Filling -
SZ Strand -
Sheath cover -
Production Line -
Warehouse
Cable production throughout the cha
Specifications
| Optical Characteristics | |||||
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation(+20°C) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
| Technical parameters | ||||||||
| Cable Type (Increased by 2 fibers) | Fiber Count | Cable Weight kg/km | Cable Diameter mm | Tensile Strength Long/Short term N | Crush Resistance Long/Short term N/100mm | Bending Radius Static/Dynamic(mm) | Supporting Wire Spec | Applications |
| GYXTC8S-FS | 2~12 | 118 | 7.65*14.5 | ≥2000/≥6000 | ≥300/≥1000 | 80/160 | Φ1.mm*7 Stranded wires | Aerial Rural communication local trunk line CATV & computer network system |
| GYXTC8S-FS | 14~24 | 129 | 8.2*15.1 | 90/180 | ||||
| Storage /Operating Temperature: -40℃ to +70℃ | ||||||||
