Key Features

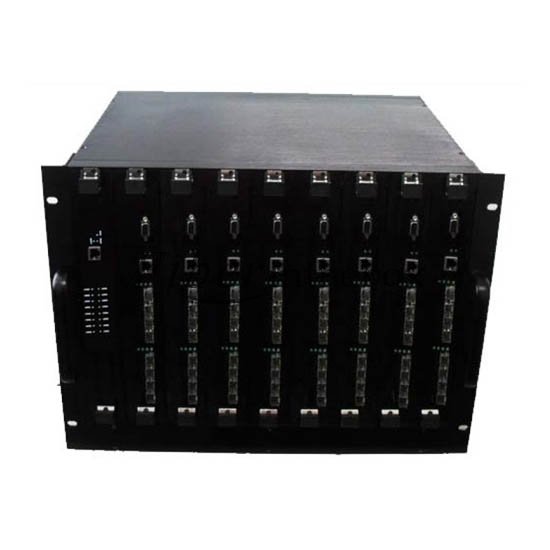

FS-E240T is a large scale office end OLT device of FTTX telecommunication level independently researched and developed by FIBERINTHEBOX Company; it conforms to IEEE802.3-2005 standard; it can provide user with access to comprehensive services such as broadband, voice, IPTV and CATV.
Strong QOS function
Our EPON system suppo s maximum 256 Logical Link Identifier (LLID); suppo ing Dynamic Bandwidth Allocation (DBA) and uplink and downlink traffic rate-limited, minimal and maximal bandwidth control and different stream weighting coefficient to fully guarantee QOS.
Rich OAM function
Our FS-E240T OLT suppo s auto-discovery, auto identification and auto-register, user line testing, remote ONU fiber failure and power failure ale . It also suppo flexible controllable multicasting, suppo IGMP snooping.
Specifications:
Parameters |
Specifications
|
|
Wavelength (nm)
|
1310(RX)/1490(TX)
|
|
Transmission Distance (km)
|
20
|
|
MAC Address Table
|
8K MAC address list in Leaflets PON board
32 uplink po s, suppo up to 4G uplink bandwidth via po aggregation function (Uplink po suppo s electronic po modules and optical po modules, which can be configured flexibly as required)
|
|
MTBF (hrs)
|
100,000
|
|
Product Features
|
High density, flexible networking
PON maximum suppo 8 boards, each board has 4 PON po , Up to 32 PON po s can be suppo ed in the complete machine
Highly reliable case, strong adaptive capacity to environment
8U case, modular design, all modules can be hot plugged, and online update is suppo ed
Redundant power, redundant fans
Good shielding measures.
Layer 2 aggregation switching
Layer 2 wire-speed forwarding; suppo rich layer 2 protocols
|
|
Protocols
|
1. IP ToS
2. IEEE802.1p priority
|
|
Network Management
|
1. Suppo GUI based graphical interface and WEB interface management
2. Suppo in-band management, out-of-band management
3. Suppo online upgrade of device software
|
|
Po features
|
1. 32 PON po s (1.25G)
2. 32 uplink po s (1G) (electronic po s and optical po s options)
3. 1 management po s (special software management)
8 console po (Leaflet PON board has a console po )
4. Each PON board has a management po
|
|
Power Consumption
|
200W
|
|
Operating Temp. (°C)
|
0～45
|
|
Storage Temp. (°C)
|
-30～60
|
|
Storage Humidity
|
10%～90% non-condensing
|
|
Rack Dimensions (mm)
|
485(L) x 360(W) x 360(H)
|
Note: This product is only a EPON OLT Rack.
Specifications
Parameters |
|
|
Wavelength (nm)
|
1310(RX)/1490(TX)
|
|
Transmission Distance (km)
|
20
|
|
MAC Address Table
|
8K MAC address list in Leaflets PON board
32 uplink ports, support up to 4G uplink bandwidth via port aggregation function (Uplink port supports electronic port modules and optical port modules, which can be configured flexibly as required)
|
|
MTBF (hrs)
|
100,000
|
|
Product Features
|
High density, flexible networking
PON maximum support 8 boards, each board has 4 PON port, Up to 32 PON ports can be supported in the complete machine
Highly reliable case, strong adaptive capacity to environment
8U case, modular design, all modules can be hot plugged, and online update is supported
Redundant power, redundant fans
Good shielding measures.
Layer 2 aggregation switching
Layer 2 wire-speed forwarding; support rich layer 2 protocols
|
|
Protocols
|
1. IP ToS
2. IEEE802.1p priority
|
|
Network Management
|
1. Support GUI based graphical interface and WEB interface management
2. Support in-band management, out-of-band management
3. Support online upgrade of device software
|
|
Port features
|
1. 32 PON ports (1.25G)
2. 32 uplink ports (1G) (electronic ports and optical ports options)
3. 1 management ports (special software management)
8 console port(Leaflet PON board has a console port)
4. Each PON board has a management port
|
|
Power Consumption
|
200W
|
|
Operating Temp. (°C)
|
0～45
|
|
Storage Temp. (°C)
|
-30～60
|
|
Storage Humidity
|
10%～90% non-condensing
|
|
Rack Dimensions (mm)
|
485(L) x 360(W) x 360(H)
|
Parameters |
|
|
Wavelength (nm)
|
1310(RX)/1490(TX)
|
|
Transmission Distance (km)
|
20
|
|
MAC Address Table
|
8K MAC address list in Leaflets PON board
32 uplink ports, support up to 4G uplink bandwidth via port aggregation function (Uplink port supports electronic port modules and optical port modules, which can be configured flexibly as required)
|
|
MTBF (hrs)
|
100,000
|
|
Product Features
|
High density, flexible networking
PON maximum support 8 boards, each board has 4 PON port, Up to 32 PON ports can be supported in the complete machine
Highly reliable case, strong adaptive capacity to environment
8U case, modular design, all modules can be hot plugged, and online update is supported
Redundant power, redundant fans
Good shielding measures.
Layer 2 aggregation switching
Layer 2 wire-speed forwarding; support rich layer 2 protocols
|
|
Protocols
|
1. IP ToS
2. IEEE802.1p priority
|
|
Network Management
|
1. Support GUI based graphical interface and WEB interface management
2. Support in-band management, out-of-band management
3. Support online upgrade of device software
|
|
Port features
|
1. 32 PON ports (1.25G)
2. 32 uplink ports (1G) (electronic ports and optical ports options)
3. 1 management ports (special software management)
8 console port(Leaflet PON board has a console port)
4. Each PON board has a management port
|
|
Power Consumption
|
200W
|
|
Operating Temp. (°C)
|
0～45
|
|
Storage Temp. (°C)
|
-30～60
|
|
Storage Humidity
|
10%～90% non-condensing
|
|
Rack Dimensions (mm)
|
485(L) x 360(W) x 360(H)
|
