Description

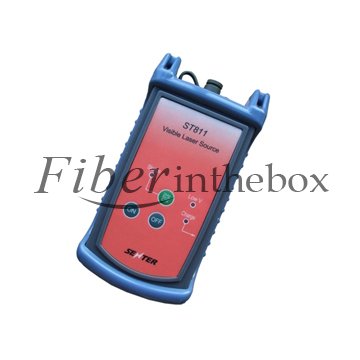

ST811 Visible Laser Source is an ideal tool for the examination of all kinds of patch cords and ribbon or bunched pigtails in the installation and maintenance of optical fiber networks, it supplies the high performance laser source for field test and lab project development. The red light emitted not only can give off from the position where the fiber is seriously curved and the covering breakage or nude fiber location, but also the poor connected location. It can test the fault location of OTDR blind-measuring area accurately. It can be widely operated for LAN, WAN, CATV, remote optical network, etc.
Main Functions
Test the fault location of OTDR blind-measuring areaTest fiber curve & break faults
Test nude fiber location and poor connected location
Key Features
FC adapter (ST, SC optional)Be suitable for SM, MM types of fiber
Low voltage warning, automatic power off and energy-save design
Small size, simple operation
Warranty and Shipping
1 year warranty is offered for this product. So you can buy it from us with confidence.Fast delivery, it usually can be shipped out in 1-2 business days, and a large quantity of it can be provided in 3-5 business days.
Our primary delivery method is FedEx overnight, it is very fast, and DHL, EMS, UPS are also available on request. That is to say. We can ship to all the countries that FedEx, DHL, EMS, UPS can arrive. You can also choose to let us give the goods to your own forwarder.
|
Emitter type |
LD |
|
Working wavelength (nm) |
650±20 |
|
Spectral width (nm) |
≤5 |
|
Output optical power (mW) |
≥0.5 |
|
Optical output mode |
Alternative with CW and 2Hz |
|
General specifications |
|
|
Working temperature(℃) |
-10~50 |
|
Storage temperature(℃) |
-20~+60 |
|
Weight (kg) |
0.2 |
|
Dimension (mm) |
160×76×28 |
|
Battery |
9V/160mAh NI-MH rechargeable battery |
|
Battery working duration (h) |
8 ~10 |
|
Low voltage warning |
≤7.2V |
