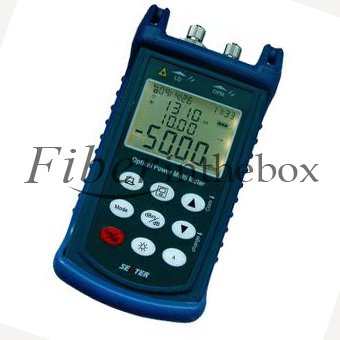

ST801 Optical Power Multi Meter

SKU#:FITB18087FXY
Model#: ST801
Out of stock
Description
ST801 Optical Power Multi Meter is the one combining functions of laser source and optical power meter. It can realize the absolute & relative power test and optical loss test. It can be widely operated to for projects of optical telecommunication, CATV system, lab project development, etc.



Features
Multi wavelengths precise measurement
Big LCD displaying, and have the real clock
Multi adapters, FC, SC, ST, LC
Absolute power measurement dBm or µW
Relative power measurement dB
Loop test and auto bi-directional test
Low voltage warning, automatic power off and energy-save design
High contrast backlit display
Small size, simple operation



Functions
As laser source and optical power meter
Absolute and relative power test
Single end for dual wavelength output, free switch from 1310 nm and 1550 nm
Optical loss test
Under voltage indication
Auto power off in 10 minutes
Auto backlight off in 60 seconds
USB communication
With real-time clock function, can real-time display the current time, provide recording time for data storage
Test record storage, up to 200 groups



The Fiber Optic Multimeter is an integrated unit of power meter & light source, it can satisfy the user by providing a choice of greater convenience and more advantages. Fiberinthebox can provide all this kind of products with one year warranty. If you are interested in the ST801 Optical Power Multi Meter at a large quantity, welcome to contact us.


Optical power meter module parameters

Wavelength range (nm)

800~1600
--1310, 1550, 1625, 850
--1310, 1490, 1550, 1625, 850 and 1300

Detector type

InGaAs

Auto Identify Frequency

270Hz, 1KHz, 2KHz

Power range (dBm)

-50 ~+26 or -70 ~ +6

Uncertainty

±5%

Resolution (dBm)

Linearity: 0.1%
Logarithm: 0.01

Laser source module parameters

Emitter type

FP-LD/DFB-LD

Dual working wavelength switch (nm)

1310±20
1550±20

Spectral width (nm)

≤5

Output optical power (dBm)

≥-7

Power Stability (dB) (Short time)

≤±0.05/15min

Power Stability (dB) (Long time)

≤±0.1/5h

General specifications

Working temperature(°C)

0~40

Storage temperature(°C)

-10~+60

Dimension (mm)

160×76×28

Battery

3.7V/2500mAh Li- rechargeable battery

Battery working duration (h)

≥140 (only optical power meter)
≥70 (optical power meter & laser source)

Low voltage warning

≤3.4V
