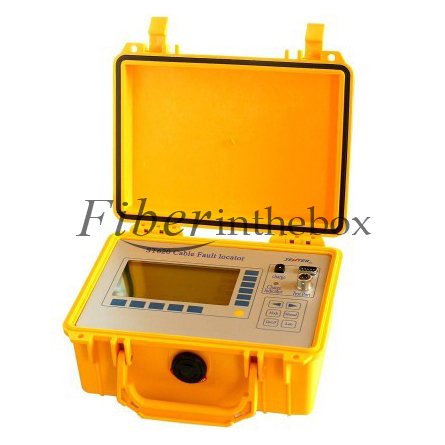

ST620 Cable Fault Locator

This cable fault locator is designed for ease of use. It combines with both time domain reflectometer (TDR, pulse reflection testing ) and intelligent bridge testing (Bridge) for measuring the exact fault location such as the broken line, cross faults, ea hing, poor insulation and poor contact of the lead covered cables as well as plastic cables.
It can test almost all the telecom cables. Simply select the modes which you are going to use. Distance, VOP, Gain and Range are automatically selected and adjusted as you scan the cable. Just move the cursor to the fault to pinpoint its location.
It is an effective tool to reduce troubleshooting time, improve work efficiency and reduce labor intensity of line maintenance staff. It also can be used in line projects acceptance and inspection of electrical cables.



1. Large color LCD Display (480 x 280 dot); humanized operation interface; six function keys and simple operation.
2. Both pulse reflection testing (TDR) and intelligent bridge testing (Bridge) can test broken lines, crossing lines, poor insulation and other types of faults.
3. Manual testing function is preserved.
4. Full English Menu is easy to master and use.
5. With megameter and ohmmeter, it enables to test insulation resistance and loop resistance.
6. With USB Po , it is easy to upload testing data to computer
7. Rechargeable lithium battery, intelligent charging without duty.
8. Small dimension, light weight and po able design.



1) Carry case.
2) Re-chargeable battery and charger/adapter.
3) Test Line
4) User Manual



Fiberinthebox is specializing in manufacturing optical transceivers and subsystem for optical fiberal communications in Metro Networks, Access Networks, Fiber Channel, and FTTX, etc. That means, we are specializing in supplying optical fiber components and network equipment. And if you are interested in this ST620 Cable Fault Locator and want to know more details, welcome to contact us at sales@Fiberinthebox.com.

1) Pulse reflection testing (TDR)
Max range: 8 km
Dead Zone: 0 m
Testing Accuracy: 1m
Pulse width: 40ns-10μs with automatic adjustment
Automatic impedance balance adjustment
Automatic and manual gain adjustment
2) Intelligent bridge testing (Bridge)
Max poor insulation resistance: 100 MΩ.
Testing accuracy: ±1%×cable length
The max length of testing cable: 9999m
Charging time: 3 hours
Continued operating time: 8 hours
Dimension: 220×160×90 (mm3)
