Description

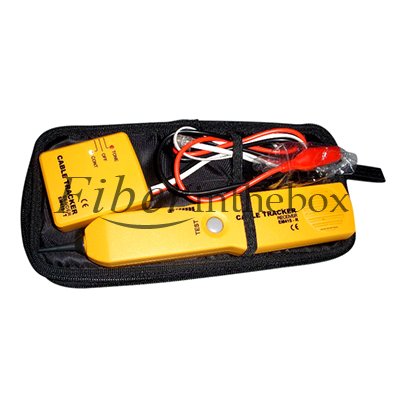

This cable tracker is designed to identify and track cables or wires within a group without damaging the insulation. For telephone line, it can identify some states in the line. Owning this instrument, it is more convenient to install, debug and maintain telephone line. There is a sender and a receiver included in this ST201 cable tracker.
Functions
1. Judge continuity of the cables or wires.
2. Track the cables or wires, and diagnose the break point.
3. Receive the tone signal on the cables or wires (telephone line)
4. Identify the state in the working telephone line (clear, ring, busy)
5. Send a signal solid tone or dual alternating tone to the object cables or wires.
Key Features
1. Track cable or wires
Use sender (switch to tone) and receiver
Connect the test leads to the pair, or attach one test lead to ground and another test lead to either side of the line. Move the Receiver close to and along the pair (or the line). Reception of the tone indicates the track.
Note: Do not connect to any active circuit in this mode.
2. Battery Replacement
a. Sender battery replacement
Remove the screw on the back case, remove the back case, and replace the exhausted battery with a new one of 9V (6F22). Rejoin the back case and install the screw.
b. Receiver battery replacement
Remove the screw on the battery compa ment, remove the battery cover, and replace the exhausted battery with a new one of 9V (6F22). Rejoin the cover and install the screw.
Note: Fiberinthebox is your reliable supplier of cable tracker, and all are 100% test before leaving the factory. If you want this high quality and effective ST201 cable tracker at a large quantity, please contact us, we will give you a special discount.
