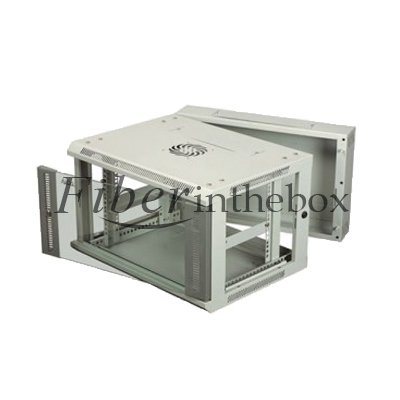

Luxury(type 2) 6U 19" 600mm Wall Mount Network Cabinet
Po able wall mounted network cabinet 6U to 18U for networking.
Standards - ANSI/EIA RS-310-D, DIN41497 pa 1, IEC297-2, DIN41494 pa 7, GB/T3047.2-92
Main material:
1. SPCC cold rolled steel;
2. Thickness: mounting rail: 1.5mm, others: 1.2mm
3. Surface finish: Degreasing, pickling, phosphoric, powder coated
4. Loading capacity: 60KG
Features:
1. Welded reliable frame structure
2. Standing or wall mounting installation
3. Feet and castors are optional
4. Easy mounting installation
5. 19" standard installation
6. Lockable perspex door, removable side doors, back doors
7. All cabinets are finished in Goose Grey
Contents:
1. 1 x 6U 600mm Cabinet
2. 1 x Power supply
3. 1 x Fan
4. 1 x Bag of Nuts and Bolts
5. 1 x Layer board
|
Capacity (U) |
External dimension W*D*H |
Weight (kg) |
|
6 |
600*600*380 |
27 |
|
9 |
600*600*530 |
32 |
|
12 |
600*600*650 |
37 |
| 15 | 600*600*780 | 42 |
|
18 |
600*600*910 |
47 |
