Description:
FIBERINTHEBOX’s Quad Po SFP Gigabit Ethernet PCI Express Server adapter is PCI-Express X4 SFP
Gigabit Ethernet network interface card that is based on a single chip, non-Bridged quad po GBE controller.
FIBERINTHEBOX’s Quad Po SFP Gigabit Ethernet PCI Express Server adapter is designed for Servers and high-end appliances. The performance is optimized so that system I/O is not the bottleneck in high- performance networking applications.
FIBERINTHEBOX’s Quad Po SFP Gigabit Ethernet server adapter is based on Intel i350 Quad po Gigabit
Ethernet MAC+PHY of Intel Controller. The FIBERINTHEBOX i350 suppo PCI-SIG Single-Root I/O
vi ualization and sharing specification (SR-IOV).
FIBERINTHEBOX’s Quad Po SFP Gigabit Ethernet PCI Express Server adapter enable fault-tolerant via teaming. Traffic from the failed po is routed through other members of the team.
FIBERINTHEBOX’s Quad Po SFP Gigabit Ethernet PCI Express Server adapter has an integrated hardware acceleration that performs
TCP/UDP/IP checksum offload and TCP segmentation. The host processing offloads accelerators frees CPU for application processing.
FIBERINTHEBOX’s Quad Po SFP Gigabit Ethernet PCI Express Server adapter is the ideal solution for implementing multiple network segments,
mission-critical high-powered networking applications and environments within high performance servers.
Key Features:
Performance Features:
• 8 Transmit and 8 Receive queues per po
• Up to 8 queues of Receive Side Scaling (RSS) minimize CPU utilization across multiple processor systems
• Suppo PCI-SIG Single-Root I/O vi ualization Rev 1.1.
• Suppo for up to 8 vi ual function ( VFs)
• Pa ial replication of PCI Configuration space
• Suppo for 8 pools (single queue) of vi ual machine Device Queues (VMDq) per po
• Suppo Direct Cache Access (DCA)
• TSO interleaving for reduced latency
• Minimized device I/O interrupts using MSI and MSI-X
• UDP, TCP and IP checksum offload
• UDP and TCP transmit segmentation offload (TSO). machine
• SCTP receive and transmit checksum offload
• Packet interrupt coalescing timers (packet timers) and absolute-delay interrupt timers for both transmit and receive operation
SFP Gigabit Ethernet:
Gigabit Ethernet Adapters with SFP cage suppo :
• 1000Base-LX Fiber Gigabit Ethernet with 1000Base-LX SFP transceiver.
• 1000Base-SX Fiber Gigabit Ethernet with 1000Base-SX SFP transceiver
• SFP (1000Mb/s) Copper Gigabit Ethernet with SFP transceiver
• Small Form Factor Pluggable (SFP) Cage for SFP LC connectors
• 2Po Link synchronization
• Optional SGMII mode (future suppo )
Common Key features:
• Suppo PCI Express Base Specification 2.1 (5 GTs)
• High performance, reliability, and low power use in Intel i350 Quad integrated MAC + PHY and SERDES chip Controllers.
• Ultra deep, packet buffer per channel lowers CPU utilization.
• Hardware acceleration that can offload tasks from the host processor. The Controllers can offload TCP/UDP/IP checksum calculations
and TCP segmentation.
• Priority queuing – 802.1p layer 2 priority encoding.
•Vi ual LANs –802.1q VLAN tagging.
• Jumbo Frame (9.5KB)
• 802.x flow control
• Multicast/ broadcast Packet replication
• Suppo s Vital Product Data (VPD)
• LEDs indicators for link/Activity status

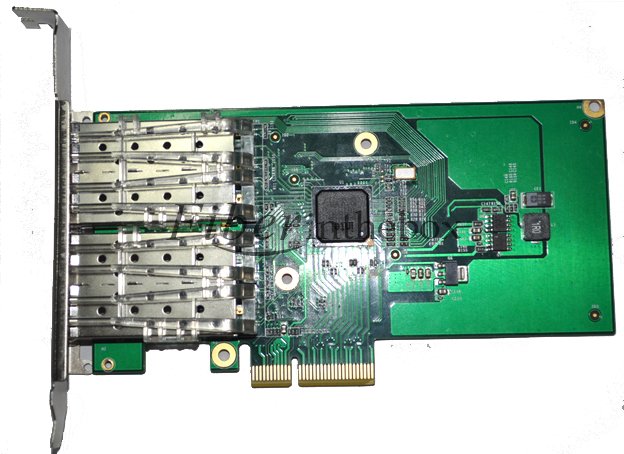

.JPG)
.JPG)
Technical :
|
SFP Gigabit Ethernet Technical - (SFP) Adapters: |
|
|
SFP (Small Form Factor Pluggable) supports: |
1Gb SERDES interfaces supports 1000Base-X in order to connect |
|
IEEE Standard / Network topology: |
Gigabit Ethernet (1000Mb/s only), 1000Base-T, |
|
IEEE Standard / Network topology: |
Fiber Gigabit Ethernet, 1000Base-SX (850nM) |
|
IEEE Standard / Network topology: |
Fiber Gigabit Ethernet, 1000Base-LX (1310nM) |
|
SFP Gigabit Ethernet Technical (SFP 1000Base-SX) Adapters: |
|
|
IEEE Standard / Network topology: |
Fiber Gigabit Ethernet, 1000Base-SX (850nM) |
|
Cables and Operating distance: |
Multimode fiber: |
|
Optical Output Power: |
Typical: -5.97 dBm |
|
Optical Receive Sensitivity: |
Typical: -19.69 dBm |
|
SFP Gigabit Ethernet Technical (SFP 1000Base-LX) Adapters: |
|
|
IEEE Standard / Network topology: |
Fiber Gigabit Ethernet, 1000Base-LX (1310nM) |
|
Cables and Operating distance: |
Single-Mode: 5000m at 9um |
|
Cables and Operating distance: |
Single-Mode: 10000m at 9um |
|
Optical Output Power: |
Typical: -5.87 dBm |
|
Optical Receive Sensitivity: |
Typical: -25.35 dBm |
|
Operating Systems Support |
|
|
Operating system support: |
Windows 2003 |
|
General Technical |
|
|
Interface Standard: |
PCI-Express Base Revision 2.1 ( 5 GTs) |
|
Board Size: |
165.15mm x 68.91mm (6.502”X2.713”) |
|
PCI Express Card Type: |
X4 Lane |
|
PCI Express Voltage: |
+3.3V +-9%, |
|
PCI Connector: |
Gold Finger: X4 |
|
Controller: |
Intel i350AM4 |
|
I/O: |
4 x SFP located on edge of the board |
|
Weight: |
150 gram (5.29 oz) |
|
Power Consumption: |
5.64 W, 0.47 A at 12V: Typical all ports operate at 1000 BASE-LX |
|
Holder: |
Metal Bracket |
|
Operating Humidity: |
0%–90%, non-condensing |
|
Operating Temperature: |
0°C – 50°C (32°F - 122°F) |
|
Storage: |
-40°C–65°C (-40°F–149°F) |
|
EMC Certifications: |
FCC Part 15, Subpart B Class B |
|
MTBF: |
66 (Years) |
|
LEDs |
|
|
LEDs: |
1 LED per port |
|
LEDs location: |
LEDs are located on the PCB, visible via holes in the metal bracket. |
|
Connectors: |
Small Form Factor Pluggable (SFP) Cage (4X1) |
